Moderno Vista Leverset in Satin Nickel
Details

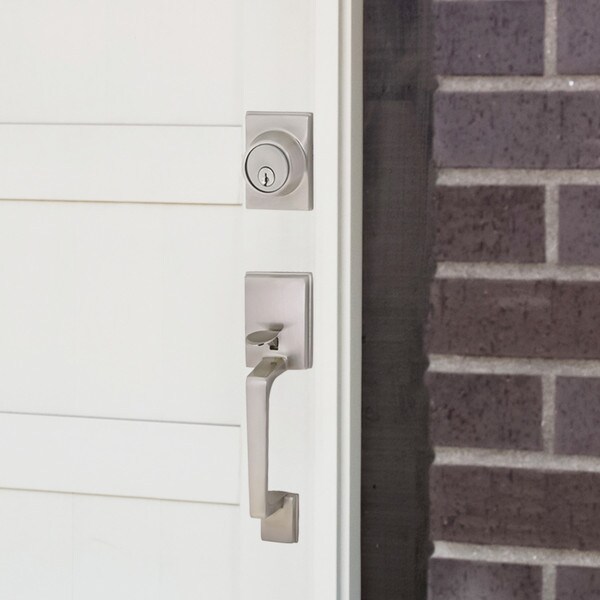

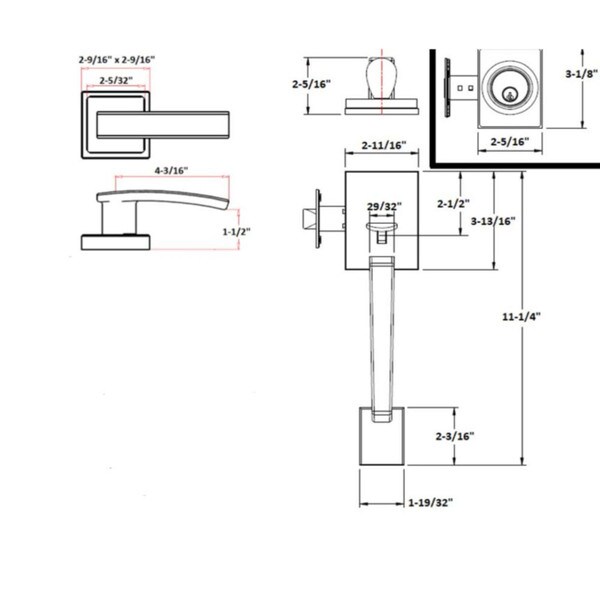

The Design House 582049 Moderno 2-Way Adjustable Entry Handleset is finished in satin nickel and designed for left or right hand doors. The popular styling of the modern square lever is easily incorporated into any architectural styles and will add a touch of elegance to your decor. This handleset fits the two most common backsets in the U.S. (backset is the distance from the edge of the door to the center of the bore hole), which are 2-3/4-inch and 2-3/8-inch. The entry latch bolt has a 1/2-inch throw and 1-inch deadbolt throw that are plated in nickel and do not budge once in place. With security in mind, this handleset accepts a key on the exterior but is operated by a turn-button knob on the interior. Entry handlesets are often used on front doors and back doors. Use this handle on standard 1-3/4-inch to 1-3/8-inch thick doors. This product has a 1-inch by 2-1/4-inch radius corner face plate and 5-pin high security removable core. If you are preparing your door for installation, the cross bore should be 2-1/8 inches (54mm) in diameter and the edge bore should be 1-inch (25mm) in diameter. This product is ANSI Grade-3 certified, which means this knob is rated for residential security. The keyway is KW1. The Design House handleset comes with a 5-year limited mechanical and finish warranty to protect against defects in material and workmanship.
- For left or right hand doors
- Adjusts for 2-3/4inch and 2-3/8inch backsets; Fits 1-3/8inch and 1-3/4inch thick doors

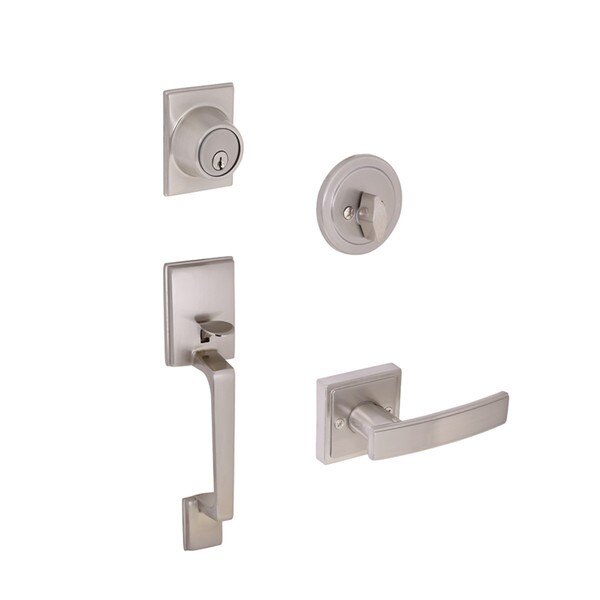

- Includes single cylinder deadbolt, exterior handle and interior passage knob/lever
