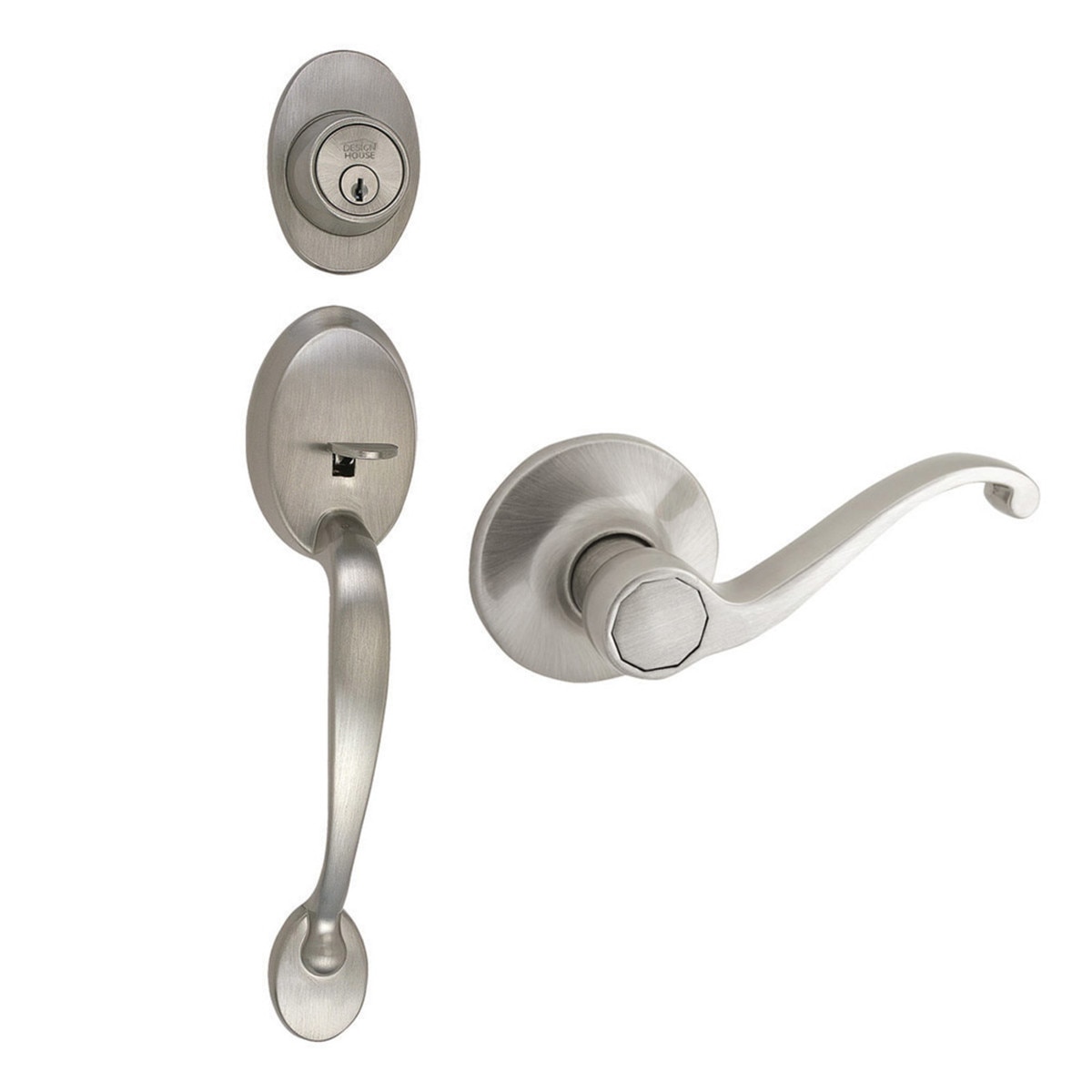

Coventry Satin Nickel Door Handleset with Deadbolt

SKU 783514
$139.49

Details

The Design House 783514 Coventry 2-Way Latch Entry Handle Set accepts a key on one side of the lock but is operated by a turn-button handle on the other side. Finished in satin nickel and designed for left or right-hand doors, this handle and keyway fit the two most common backsets in the U.S. (2-3/4 inches and 2-3/8 inches). The 1/2 inches latch bolt is plated in nickel and does not budge once in place. Entry handles are often used on front doors and back doors. Use this handles on standard 1-3/8 inches and 1-3/4 inches thick doors. This product has a 1 inch by 2-1/4 inches radius corner faceplate and 5-pin security. If you are preparing your door for installation, the cross bore should be 2-1/8 inches in diameter and the edge bore should be 1 inch in diameter.
  • Finished in satin nickel and designed for left or right hand doors
  • Fits 2-3/4-inch and 2-3/8-inch backsets; Fits 1-3/8-inch and 1-3/4-inch thick doors
  • Handle Set includes single cylinder deadbolt, exterior handle and interior passage knob/lever.

Specifications

  • Length: 2.85
  • Width: 2.4375
  • Height: 12
  • Weight: 3.79
