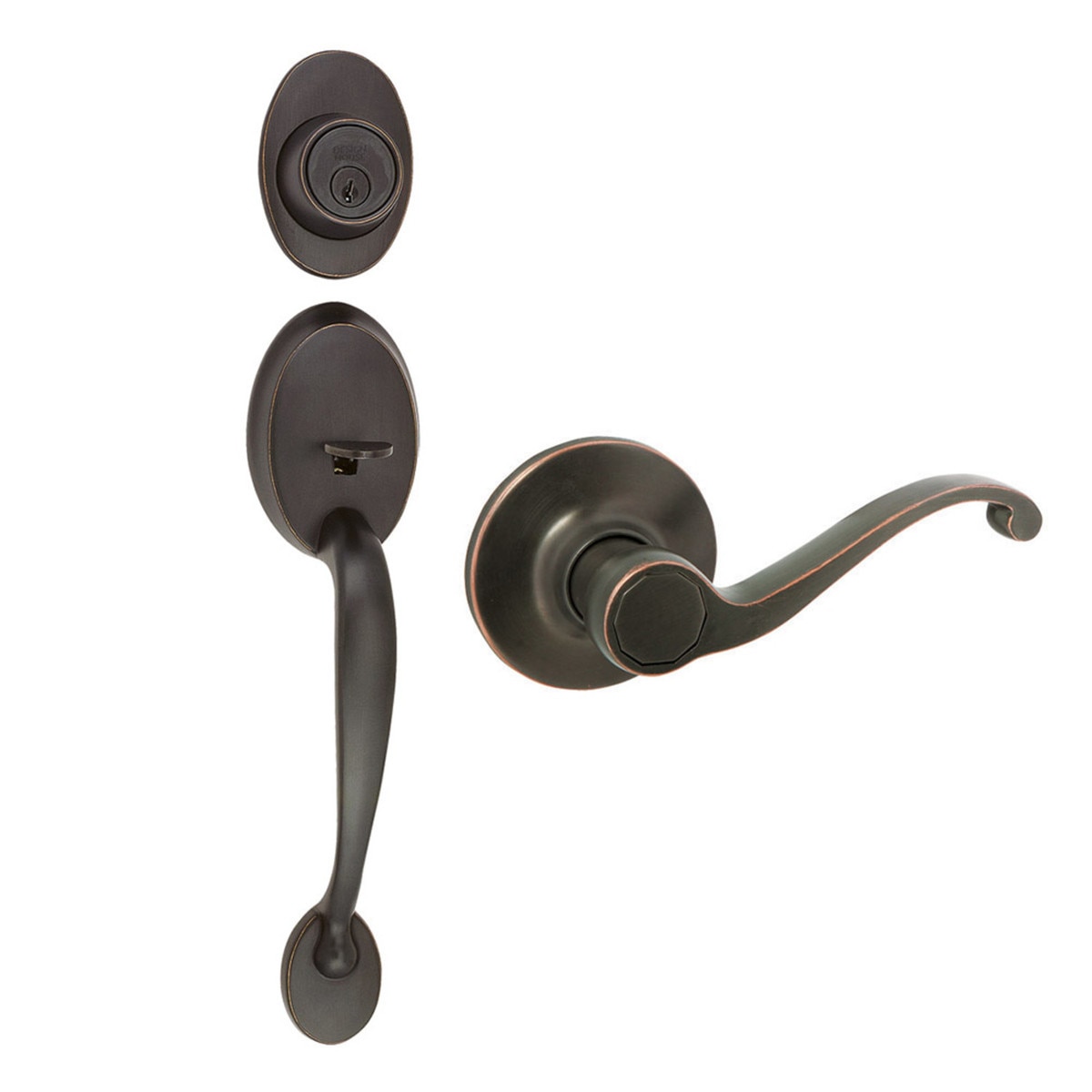

Coventry Bronze Door Handleset with Scroll Lever and Deadbolt
Details

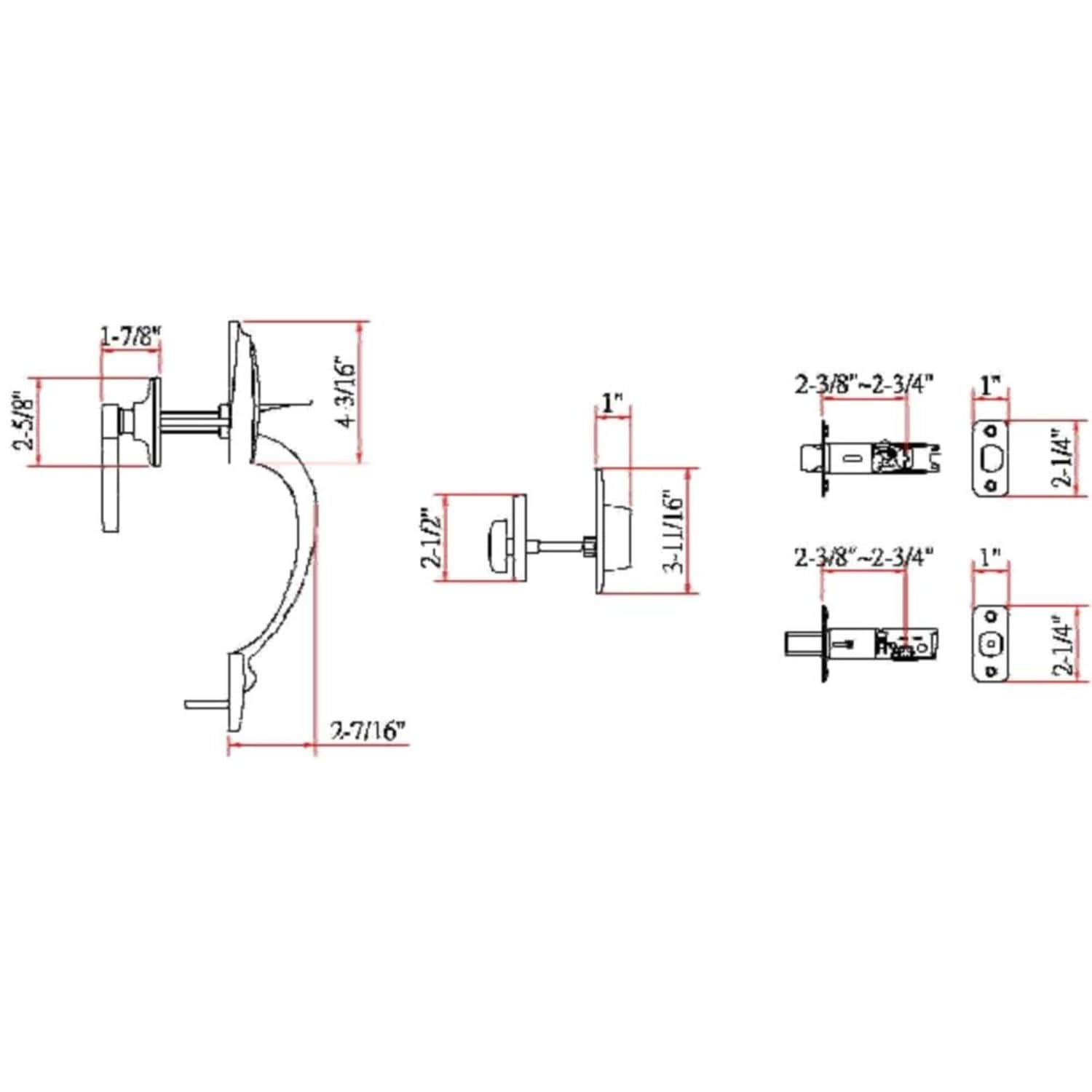

The Design House 791699 Coventry 2-Way Latch Handle Set accepts a key on one side of the lock but is operated by a turn-button handle on the other side. Finished in oil-rubbed bronze and designed for left or right-hand doors, this knob and keyway fit the two most common backsets in the U.S. (2-3/4 inches and 2-3/8 inches). The 1/2 inches latch bolt is plated in nickel and does not budge once in place. Use this knob on standard 1-3/8 inches and 1-3/4 inches thick doors. This product has a 1 inch by 2-1/4 inches radius corner faceplate and 5-pin security. If you are preparing your door for installation, the cross bore should be 2-1/8 inches in diameter and the edge bore should be 1 inch in diameter.
- Finished in oil rubbed bronze and designed for left or right hand doors
- Fits 2-3/4-inch and 2-3/8-inch backsets; Fits 1-3/8-inch and 1-3/4-inch thick doors
- Handle Set includes single cylinder deadbolt, exterior handle and interior passage knob/lever.
Specifications
- Length: 6.375
- Width: 2.44
- Height: 12
- Weight: 3.89
- Warranty: 5-Year limited warranty
- Spec Sheet: Click here to download
