Pro Series Passage Door Latch, Polished Brass
Details

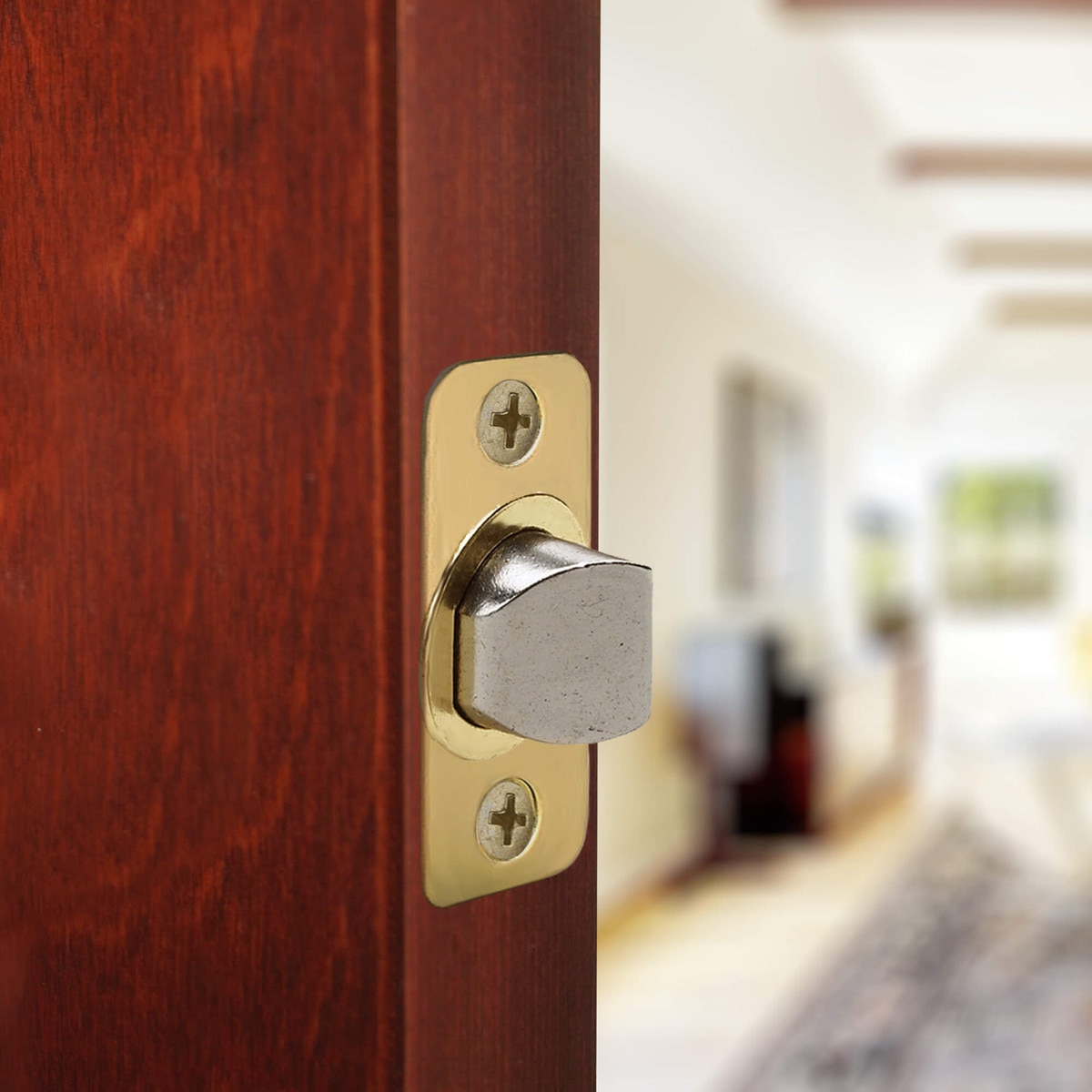

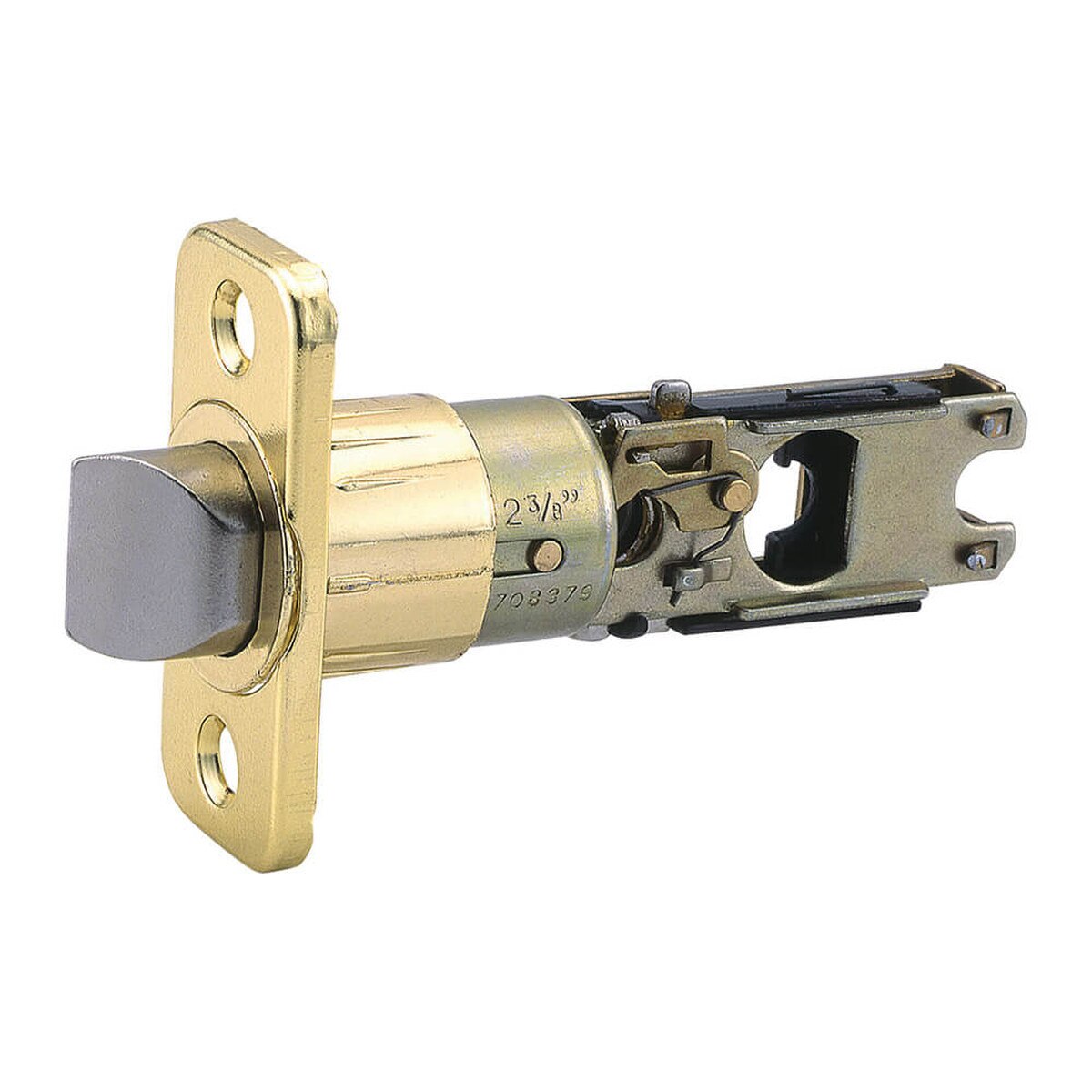

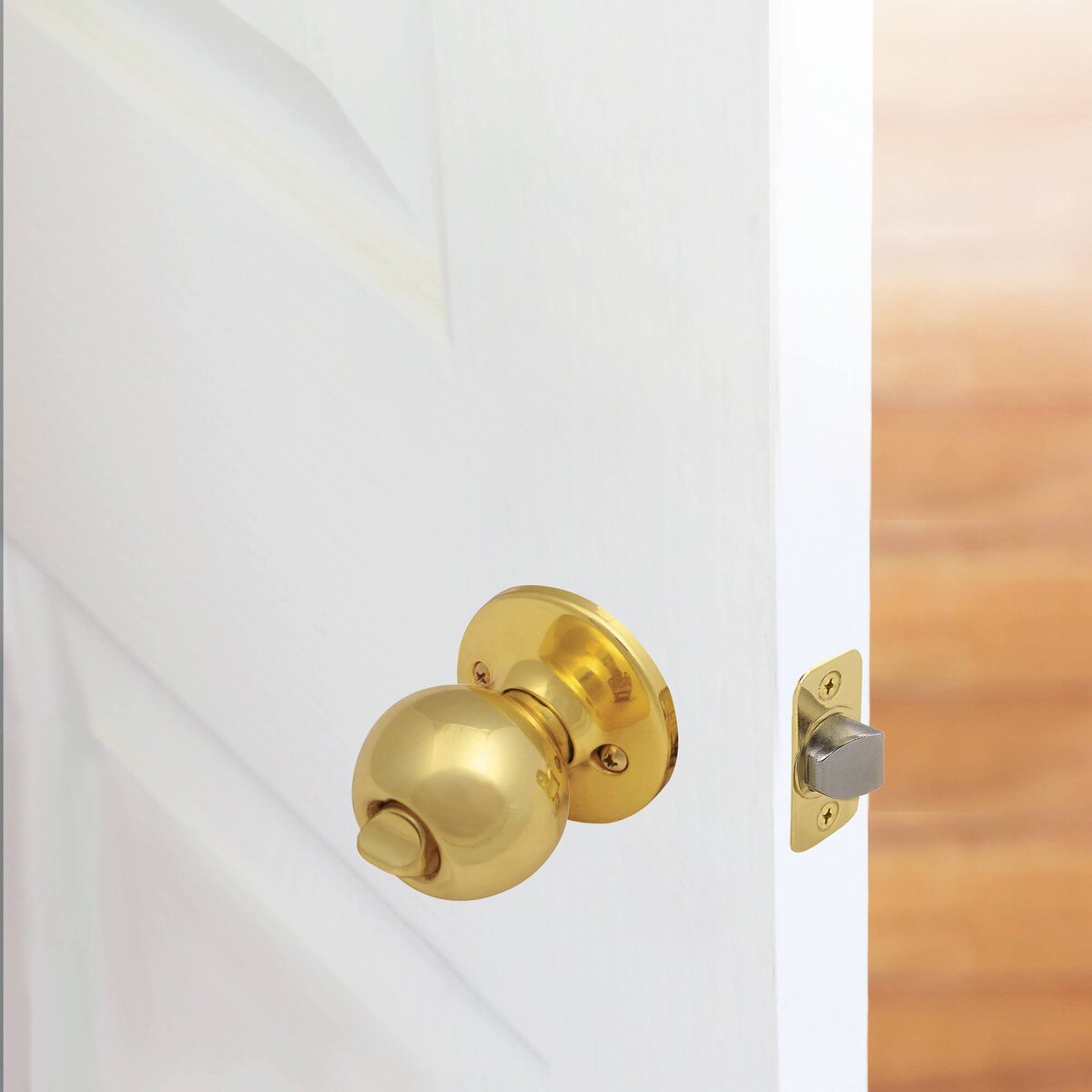

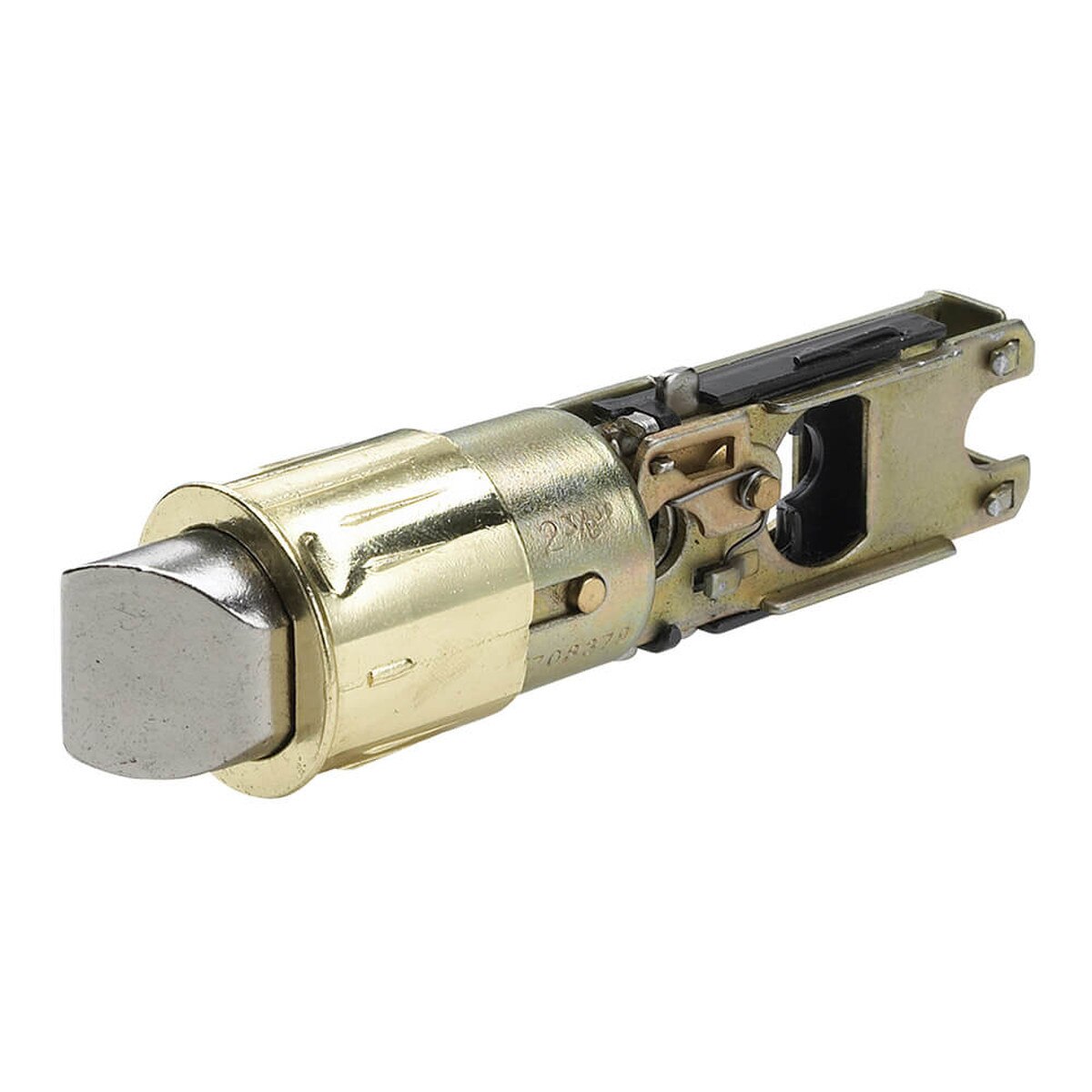

The Design House 783175 Replacement Bed and Bath Latch is for use with Design House handles and locksets. Finished in polished brass and designed for left or right hand doors, this bolt latch fits the two most common backsets in the U.S. (2-3/4-inch and 2-3/8-inch). The 1/2-inch throw is plated in nickel and does not budge once in place. This product is ANSI Grade-3 certified, which means this deadbolt is rated for residential security.
- Replacement latch for Polished Brass, Privacy/Bed & Bath, Pro Series locksets
- 6-Way universal latch for left or right hand doors
- ANSI Grade 3 certified for residential security

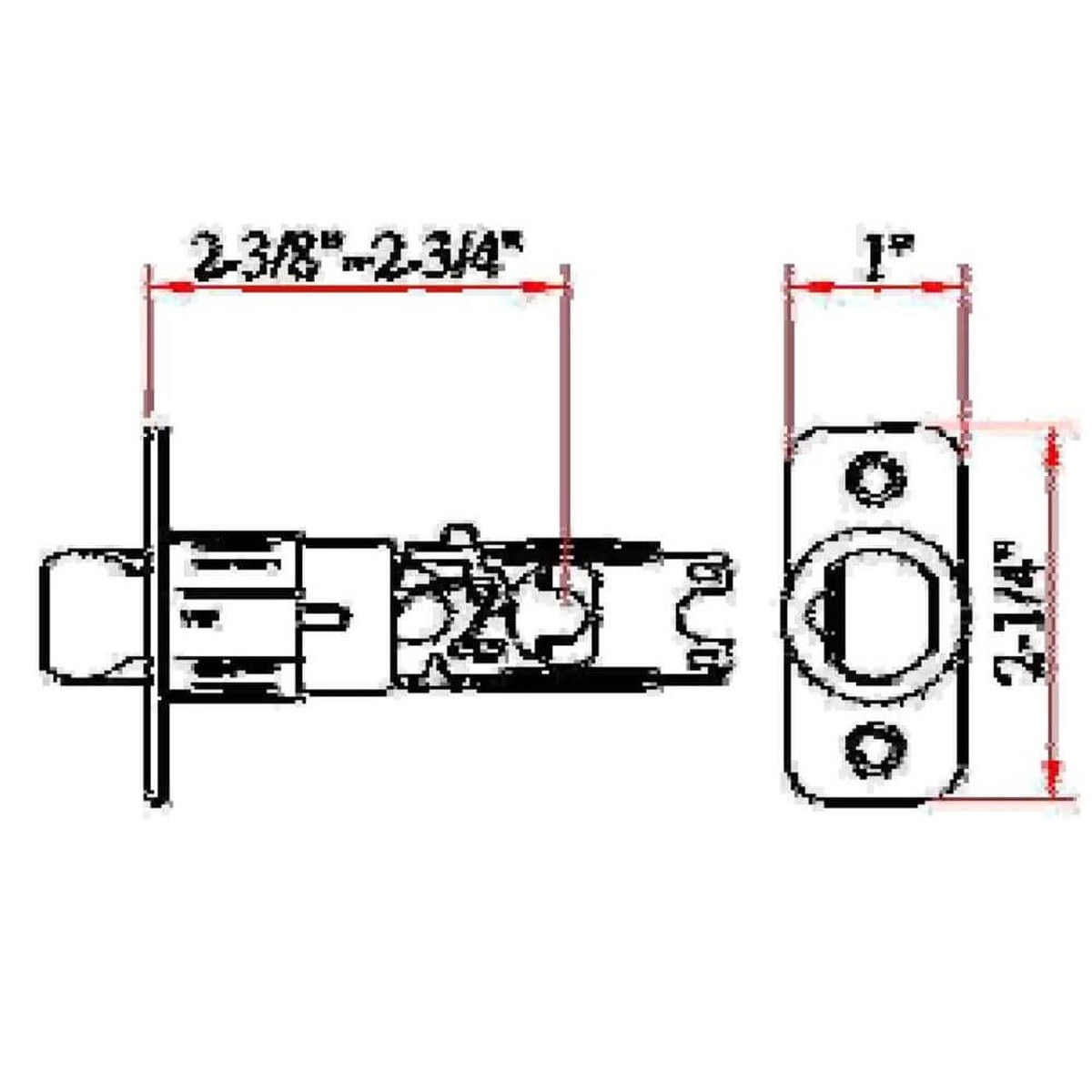

- Adjusts for 2-3/4" and 2-3/8" backsets; Fits 1-3/8" and 1-3/4" thick doors
- 5-Year limited mechanical/5-Year limited finish warranty
Specifications
- Length: 3.25
- Width: 1.05
- Height: 2.25
- Weight: 0.23
