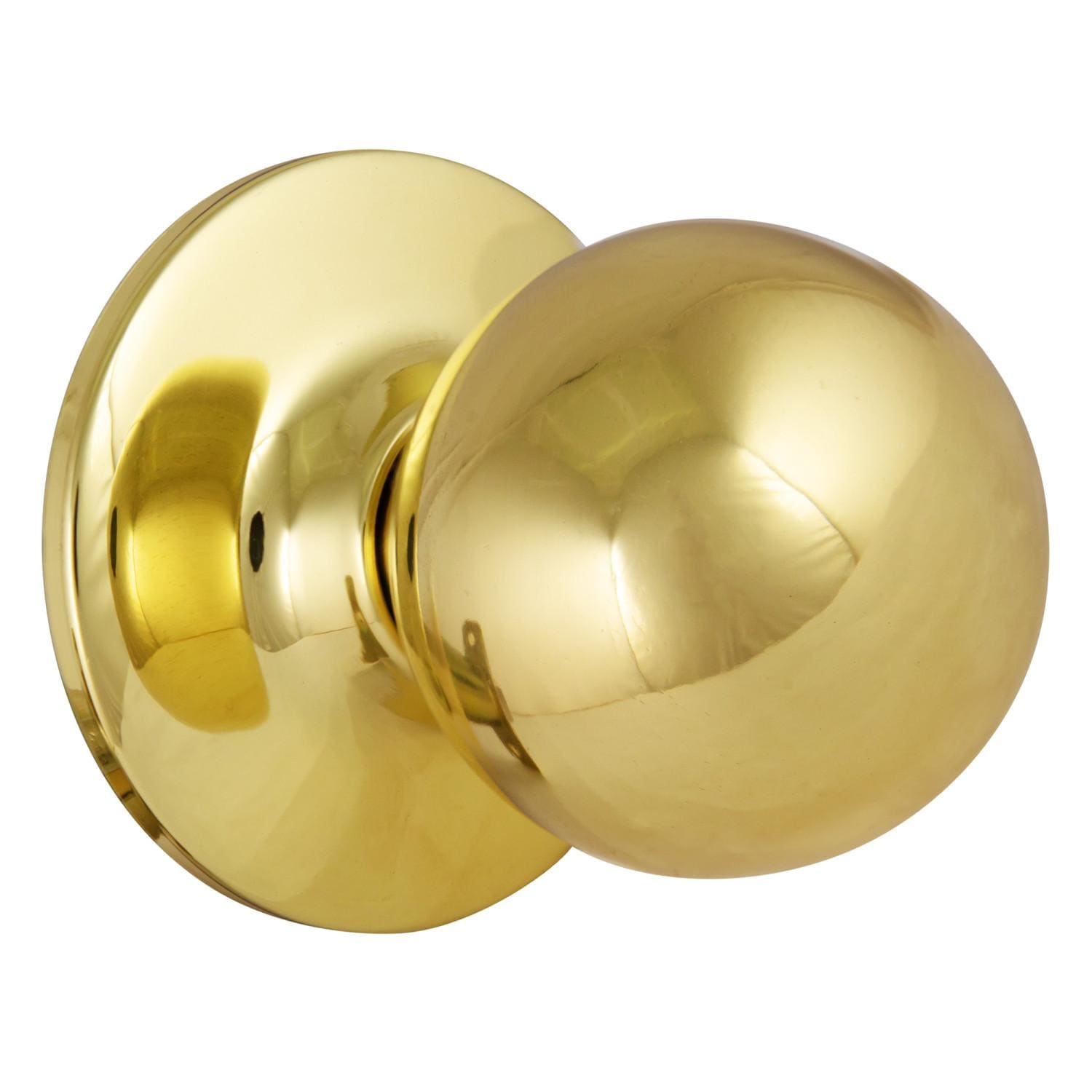

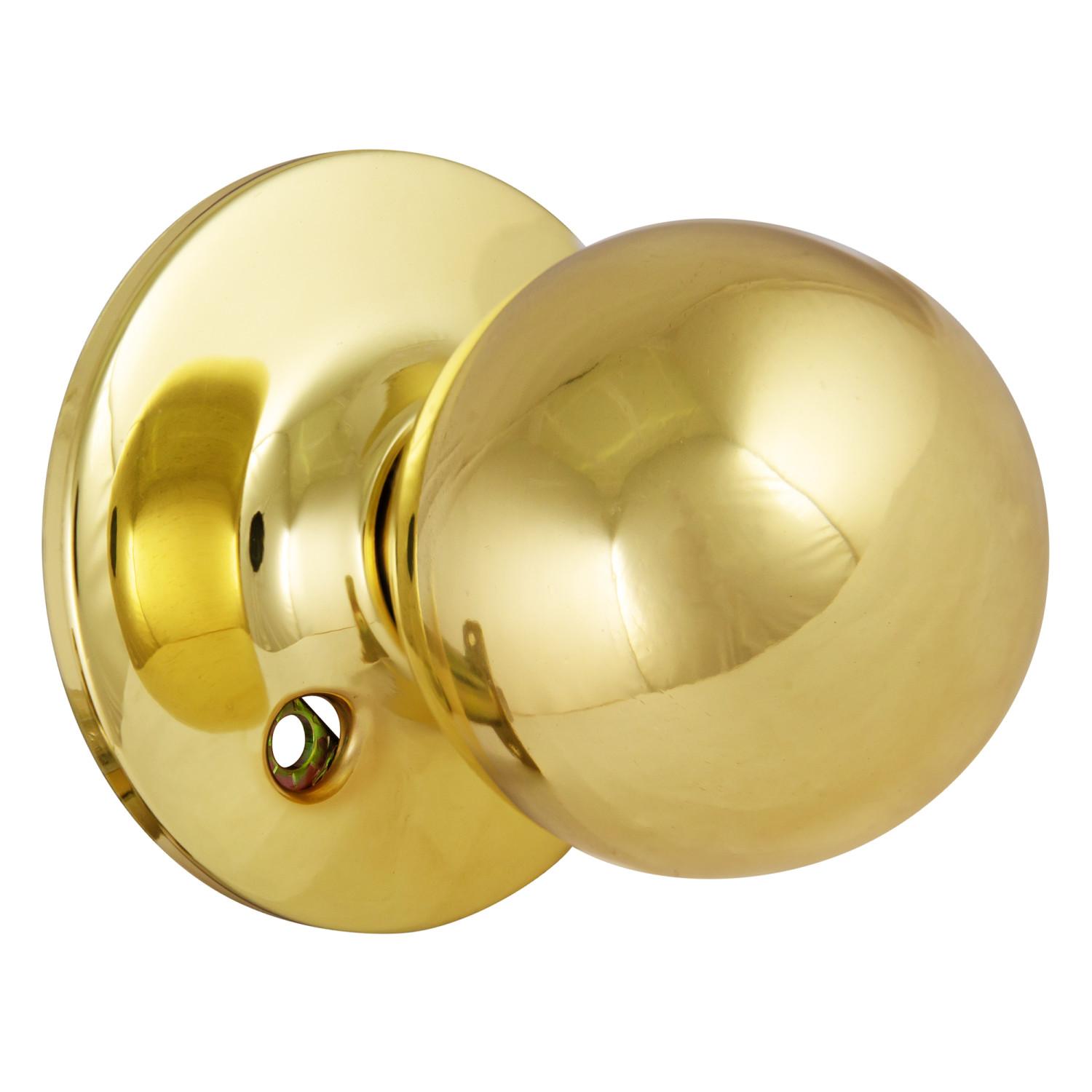

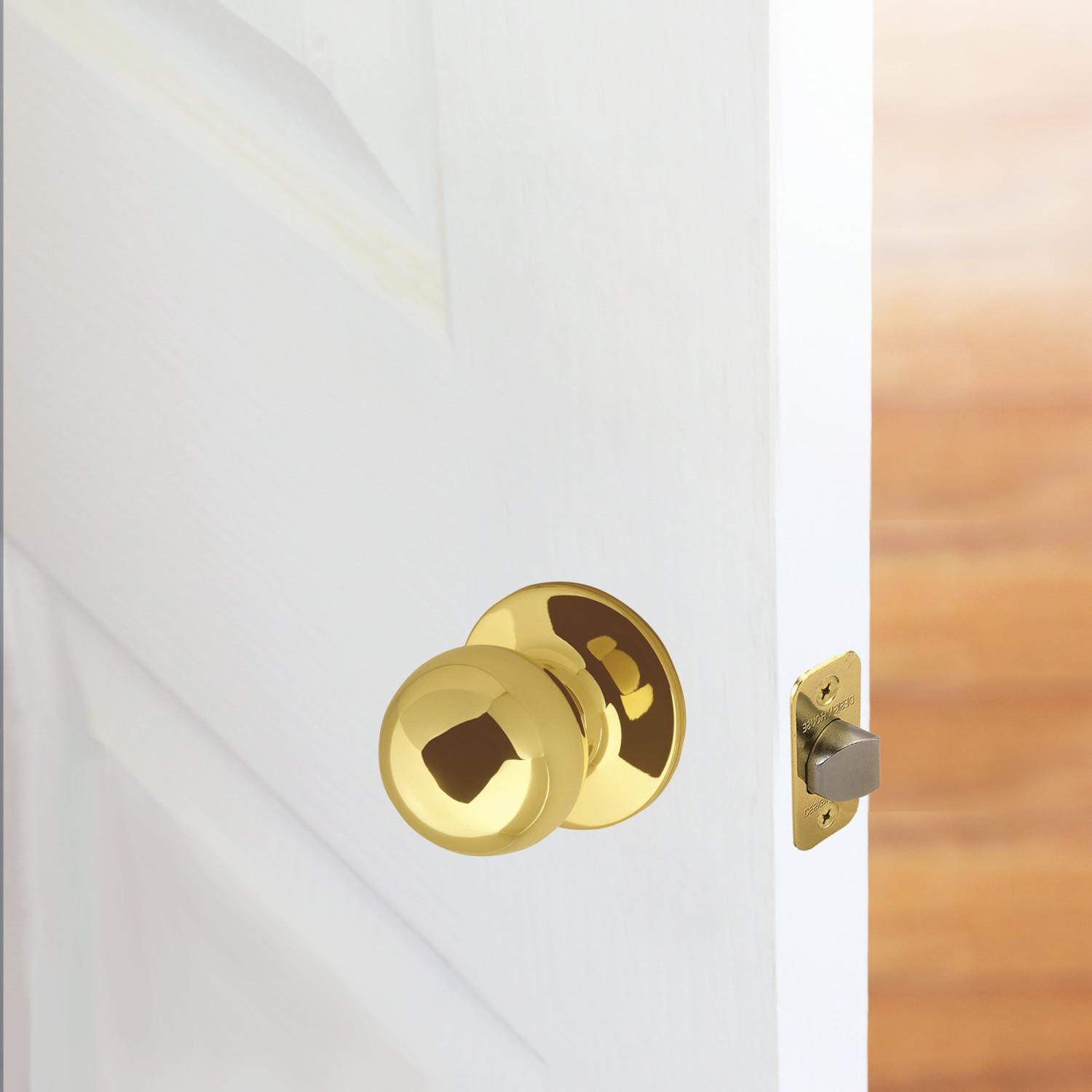

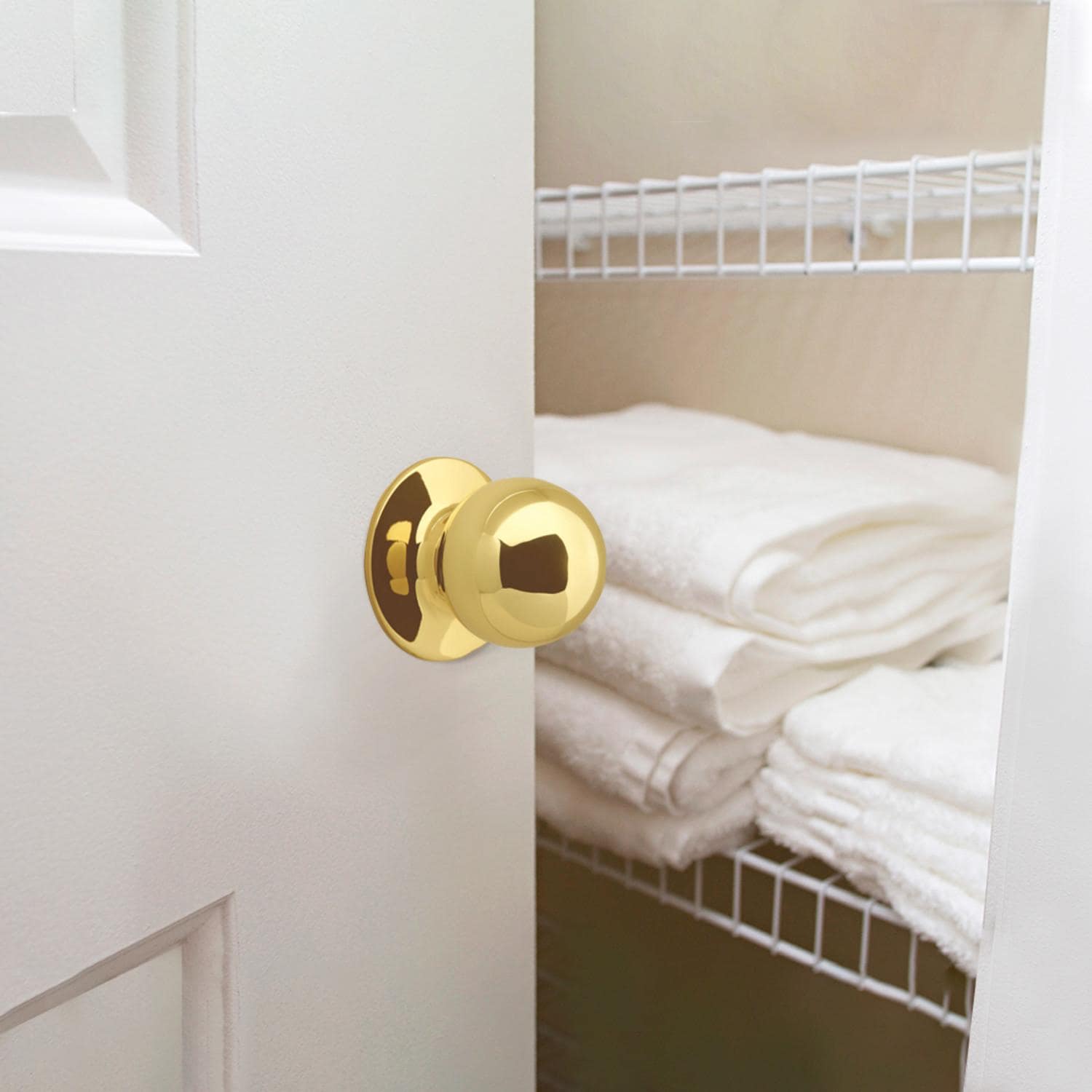

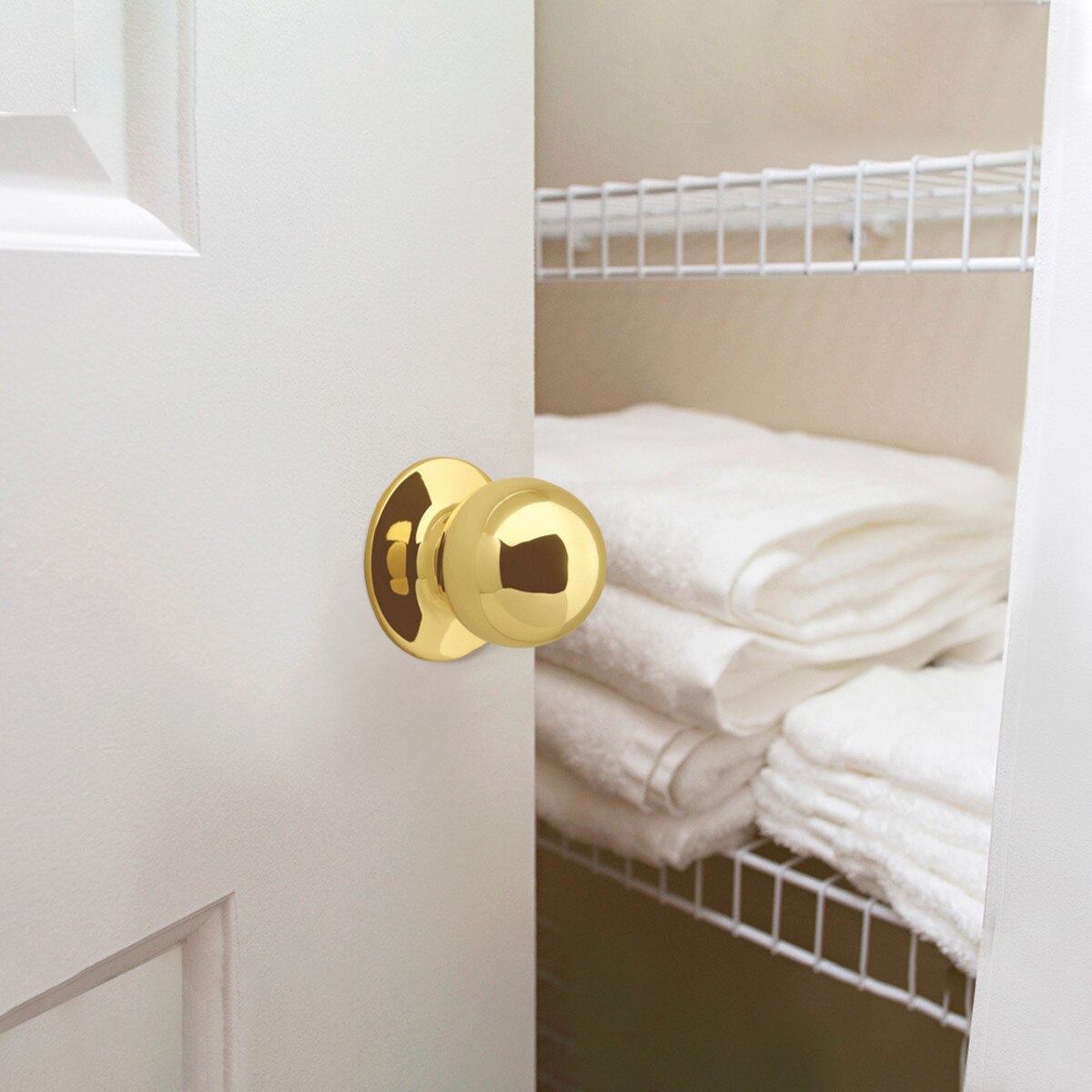

Ball Passage Door Knob in Polished Brass
Details

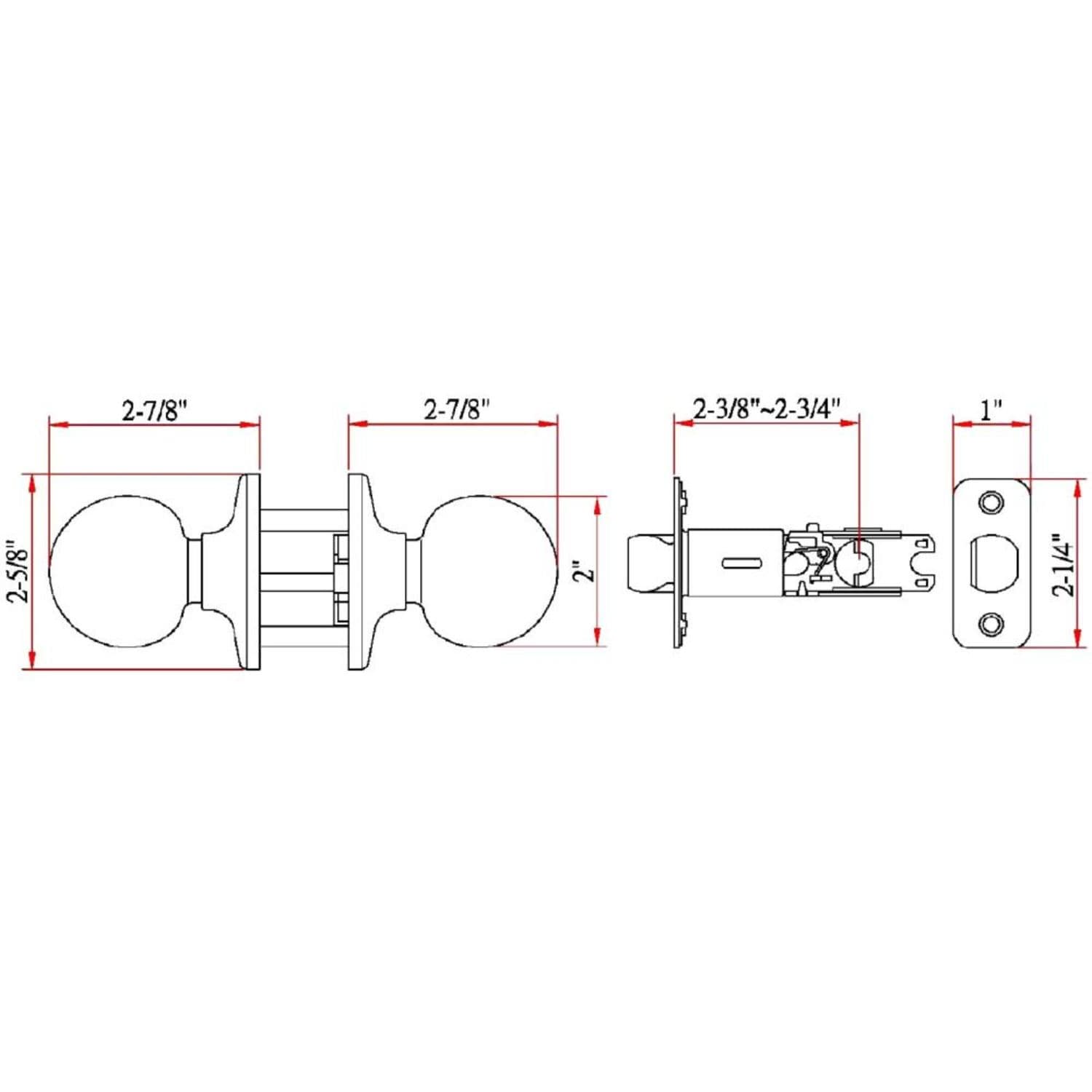

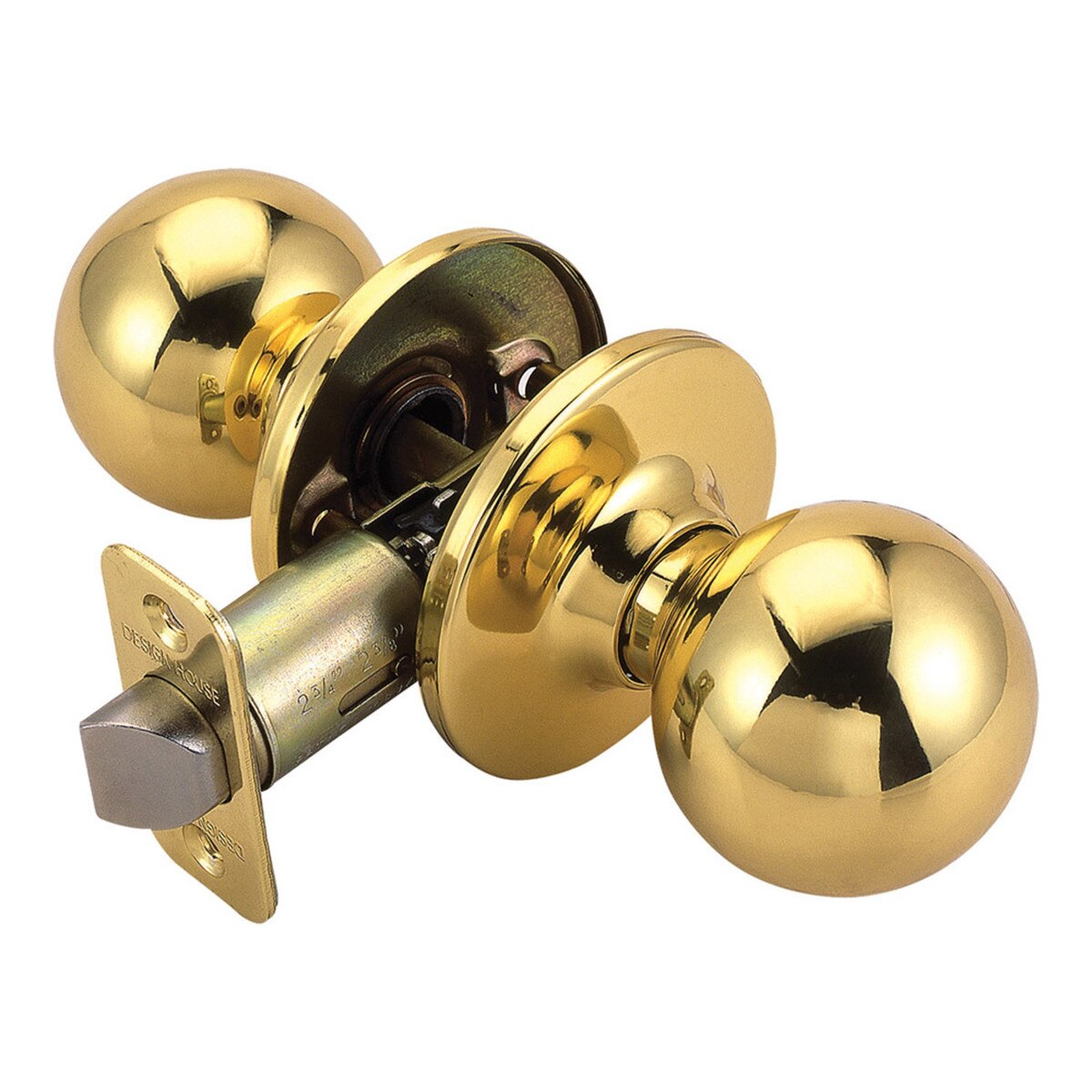

The Design House 782912 Ball 2-Way Latch Passage Door Knob does not lock and is used in bedrooms and closets. Finished in polished brass and designed for left or right hand doors, this knob fits the two most common backsets in the U.S. (2-3/4-inch and 2-3/8-inch). The 1/2-inch latch bolt is plated in nickel and does not budge once in place. This knob is shaped like a ball and does not include keyed cylinders. Use this knob on standard 1-3/8-inch and 1-3/4-inch thick doors. This product has a 1-inch by 2-1/4-inch radius corner face plate. If you are preparing your door for installation, the cross bore should be 2-1/8-inches in diameter and the edge bore should be 1-inch in diameter. This product is ANSI Grade-3 certified, which means this knob is rated for residential security. Designed and manufactured by Design House, the trusted source for quality lighting, hardware, plumbing, kitchen, and bath products for every taste and budget.
- Finished in polished brass and Designed for left or right hand doors
- Fits 2-3/4-inch and 2-3/8-inch backsets; Fits 1-3/8-inch and 1-3/4-inch thick doors
- Passage Lock; No locking function; The knobs or levers freely operate the latch.
Specifications
- Length: 2.625
- Width: 2.875
- Height: 2.625
- Weight: 1.03
- Warranty: 5-Year limited warranty
- Spec Sheet: Click here to download
