Scroll Passage Door Handle in Satin Nickel

SKU 740365
Quantity Available: 0
$22.14 $29.95

This product is discontinued.

Details

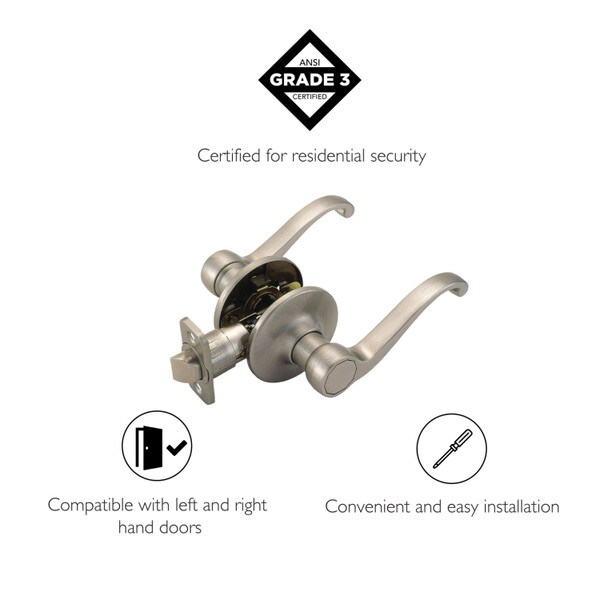

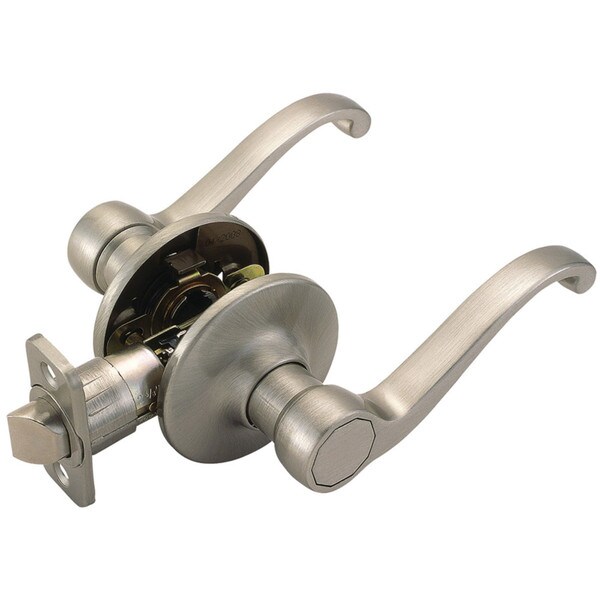

The Design House 740365 Scroll 2-Way Latch Passage Door Handle is used in bedrooms and closets. Finished in satin nickel and designed for left or right hand doors, this handle fits the two most common backsets in the U.S. (2-3/4-inch and 2-3/8-inch). The 1/2-inch latch bolt is plated in nickel and does not budge once in place. The scroll shaped handle does not include keyed cylinders. Use this handle on standard 1-3/8-inch and 1-3/4-inch thick doors. This product has a 1-inch by 2-1/4-inch radius corner face plate. If you are preparing your door for installation, the cross bore should be 2-1/8-inches in diameter and the edge bore should be 1-inch in diameter. This product is ANSI Grade-3 certified, which means this handle is rated for residential security. Designed and manufactured by Design House, the trusted source for quality lighting, hardware, plumbing, kitchen, and bath products for every taste and budget.
  • Finished in satin nickel and Designed for left or right hand doors

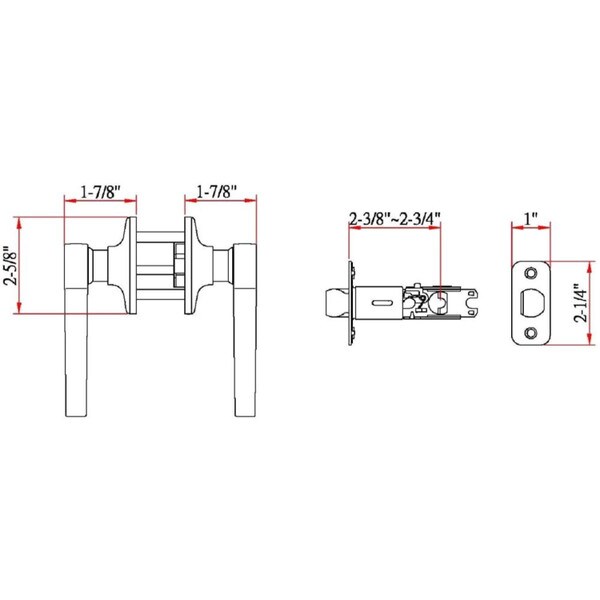

  • Fits 2-3/4-inch and 2-3/8-inch backsets; Fits 1-3/8-inch and 1-3/4-inch thick doors
  • Passage Lock; No locking function; The knobs or levers freely operate the latch.

Specifications

  • Length: 6.375
  • Width: 1.875
  • Height: 2.625
  • Weight: 1.63
  • Warranty: 5-Year limited warranty
