Emblem Round Single Cylinder Deadbolt in Satin Nickel

SKU 581868
Quantity Available: 0

This product is discontinued.

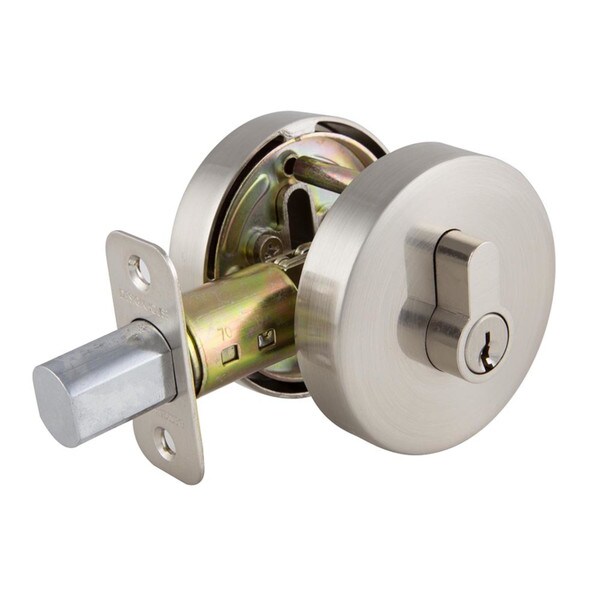

The Design House 581868 Single Cylinder Deadbolt locks and unlocks with a key on one side and a twist knob on the other. Finished in satin nickel and designed for left or right hand doors, this deadbolt fits the two most common backsets in the U.S. (2-3/4-inch and 2-3/8-inch). This deadbolt is commonly used on front doors and back doors. Use this deadbolt on standard 1-3/8-inch and 1-3/4-inch thick doors with a cross bore 2-1/8 in dia or edge bore 1-1/16 in dia. (1 in. x 2-1/4 in. radius corner faceplate). This product is ANSI Grade-3 certified, which means this deadbolt is rated for residential security.

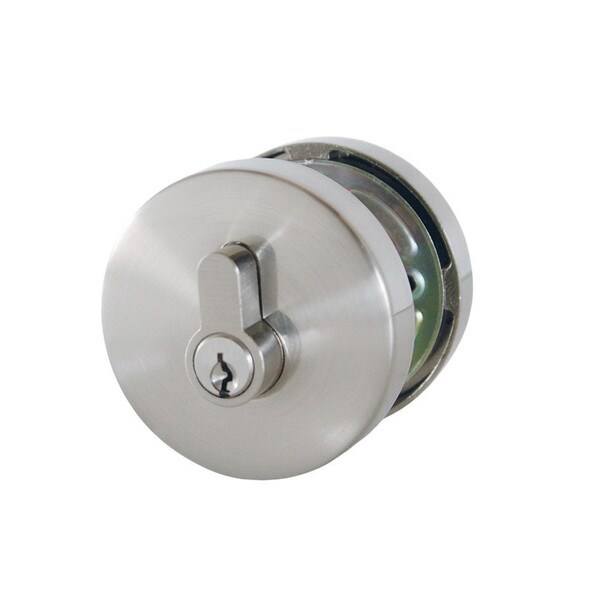

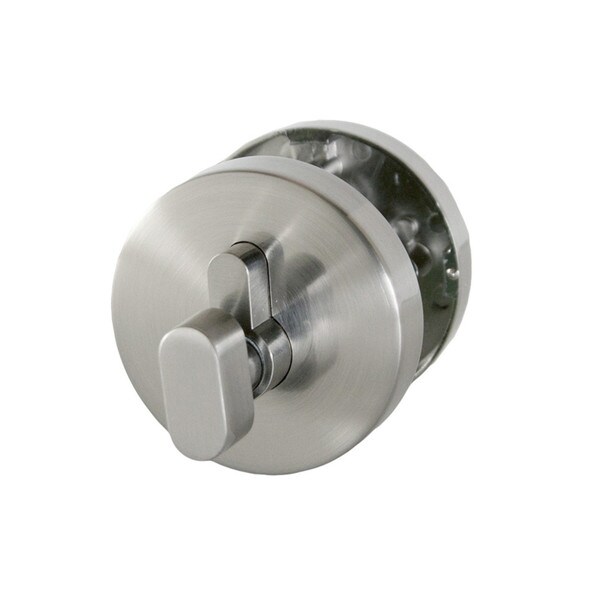

  • Single Cylinder; Operated by a key on the exterior and interior twist knob
  • Reversible to fit left or right hand doors

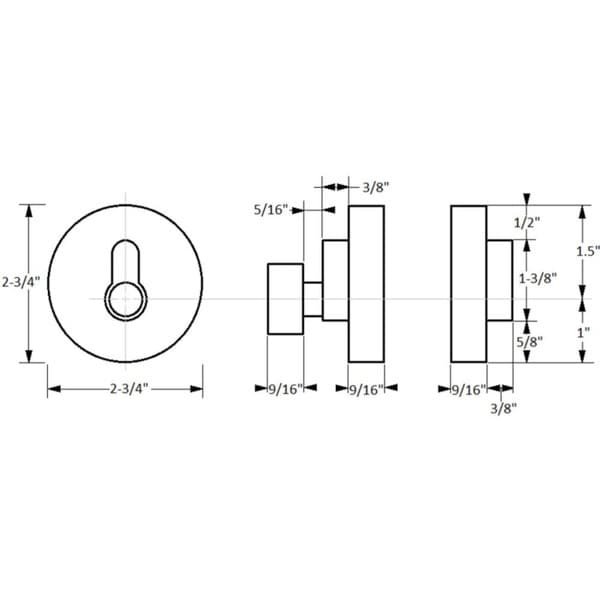

  • Adjusts for 2-3/4inch and 2-3/8inch backsets; Fits 1-3/8inch and 1-3/4inch thick doors


  • Length: 2.75
  • Width: 2.75
  • Height: 1
  • Weight: 1.33
  • Warranty: 1-Year limited warranty
