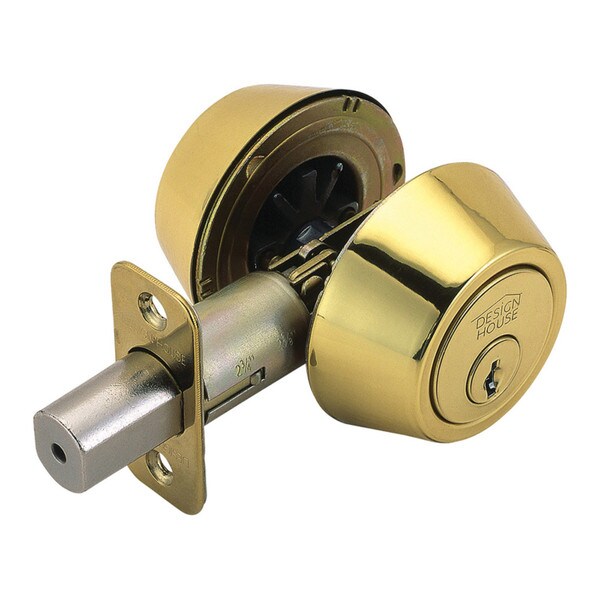

Double Cylinder Deadbolt in Polished Brass
Details

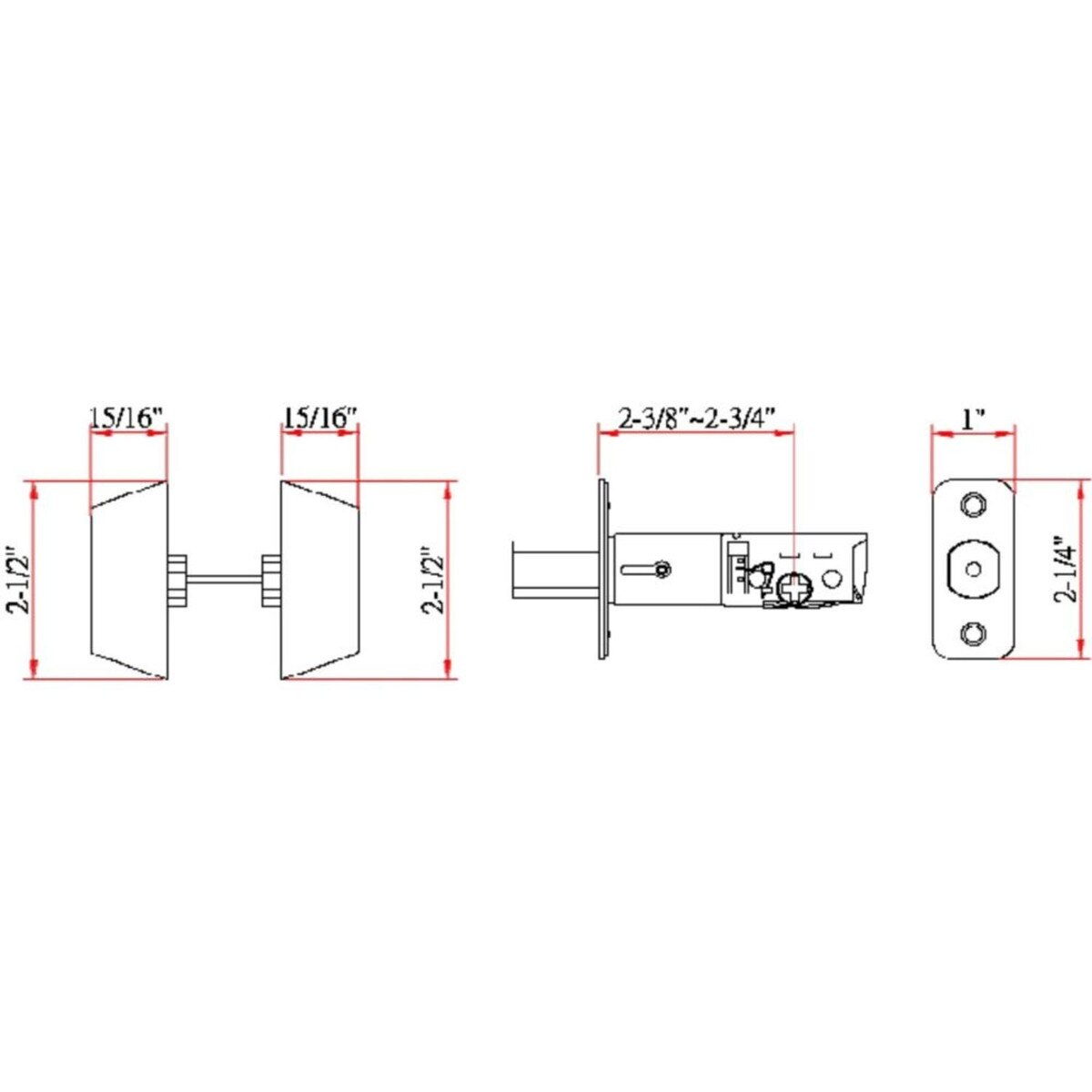

The Design House 782771 Double Cylinder 2-Way Latch Deadbolt requires a key to open the deadbolt from both inside and outside your house. Finished in polished brass and designed for left or right hand doors, this deadbolt fits the two most common backsets in the U.S. (2-3/4-inch and 2-3/8-inch). The 1-inch latch bolt is plated in nickel and features a 5-pin high security core. Once in place, the bolt does not budge. Use this deadbolt on standard 1-3/8-inch and 1-3/4-inch thick doors. This product has a 1-inch by 2-1/4-inch radius corner face plate. If you are preparing your door for this deadbolt, the cross bore should be 2-1/8-inches in diameter and the edge bore should be 1-inch in diameter. This product is ANSI Grade-3 certified, which means this deadbolt is rated for residential security. Designed and manufactured by Design House, the trusted source for quality lighting, hardware, plumbing, kitchen, and bath products for every taste and budget.
- Finished in polished brass and Designed for left or right hand doors
- Fits 2-3/4-inch and 2-3/8-inch backsets; Fits 1-3/8-inch and 1-3/4-inch thick doors
- Double Cylinder Deadbolt; Keyed lock exterior and interior
Specifications
- Length: 3
- Width: 2.5
- Height: 2.5
- Weight: 1.27
- Warranty: 5-Year limited warranty
- Spec Sheet: Click here to download
