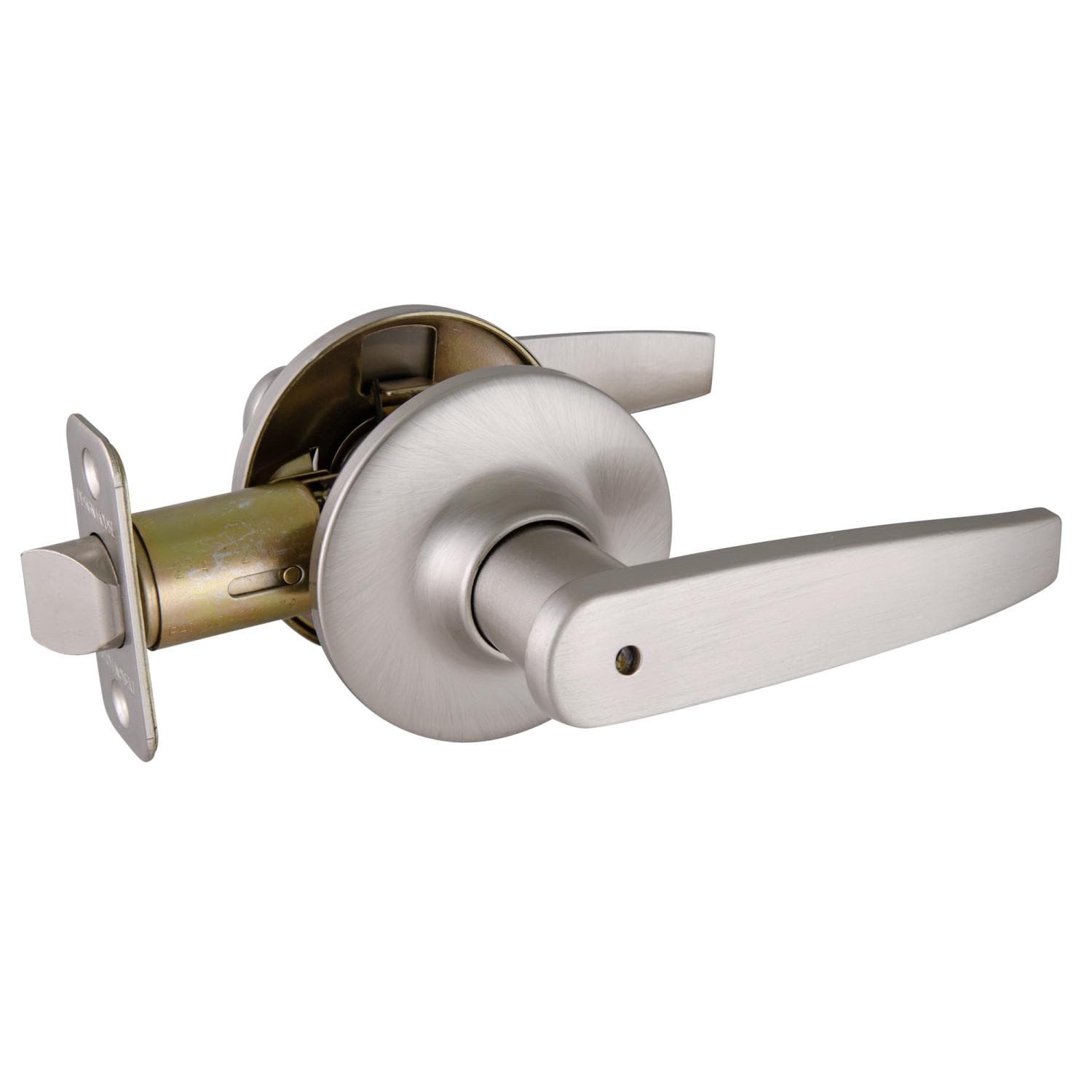

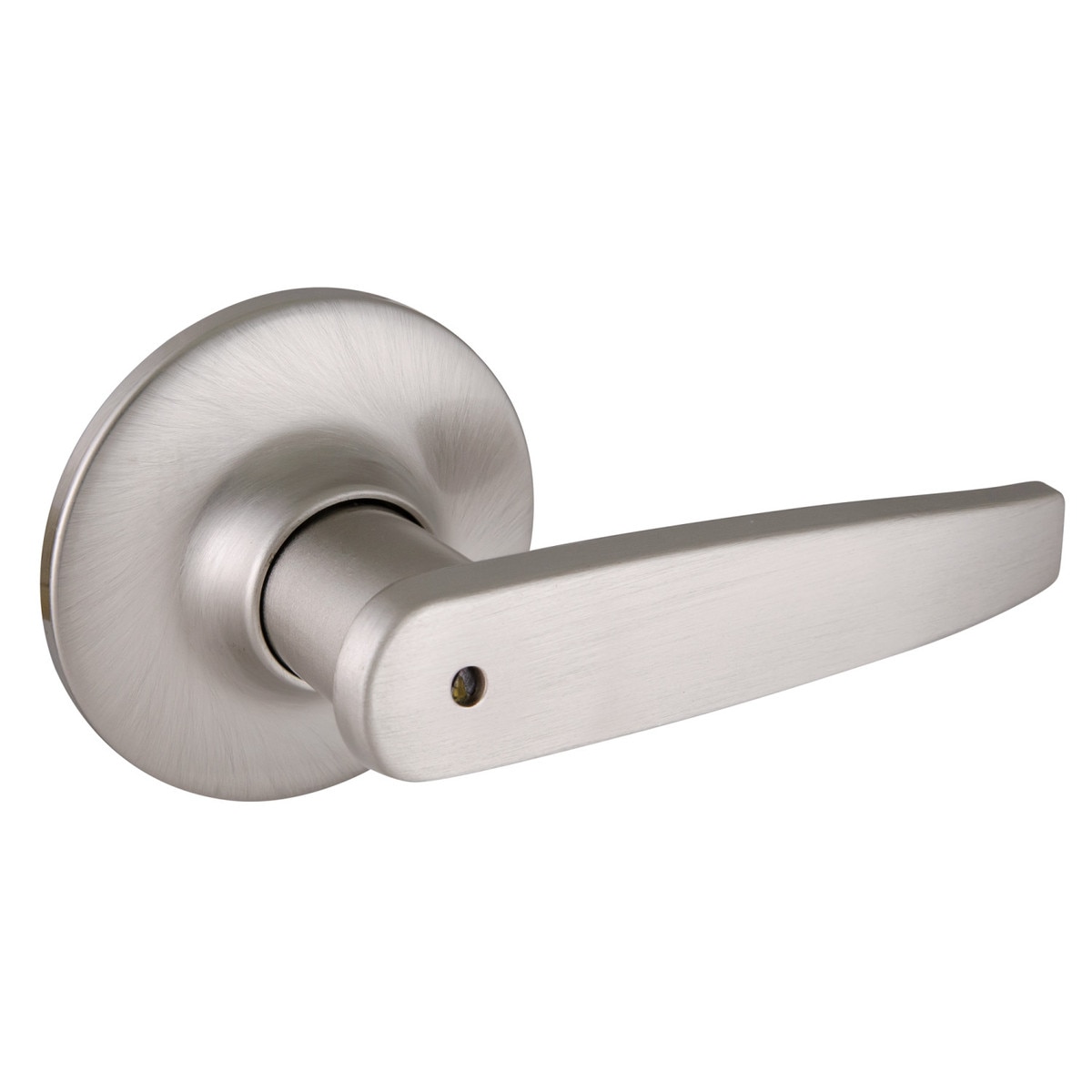

Delavan Satin Nickel Privacy Door Lever
Details

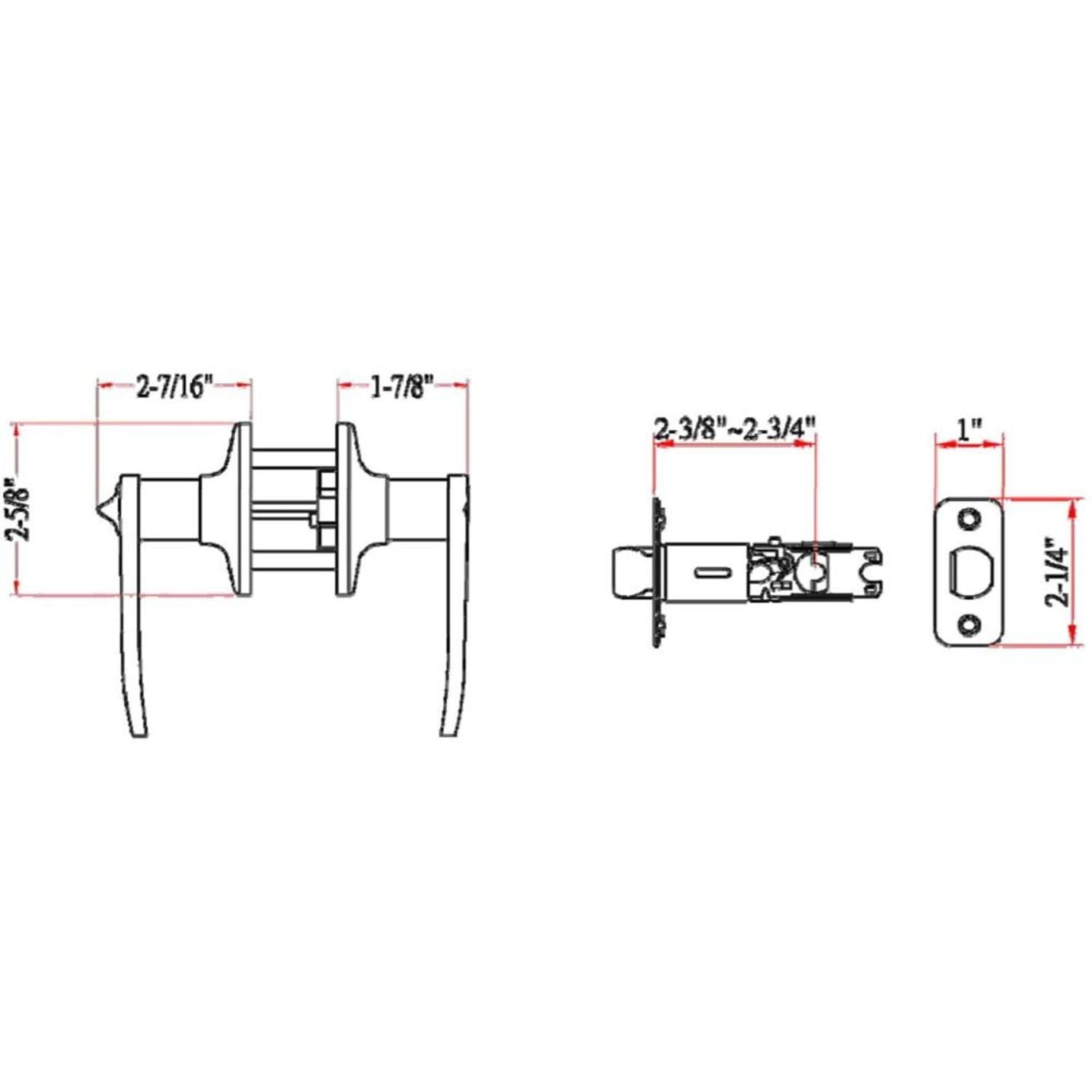

The Design House 702084 Delevan 2-Way Latch Privacy Door Handle is finished in satin nickel and designed for left or right-hand doors. This handle fits the two most common backsets in the U.S. (backset is the distance from the edge of the door to the center of the borehole), 2-3/4 inches and 2-3/8 inches. The 1/2 inches bolt throw is plated in nickel and does not budge once in place. With privacy in mind, this product locks from the inside with a turn-button and does not include keyed cylinders. Privacy knobs are often used in bedrooms and bathrooms and open with generic tools. Use this knob on standard 1-3/8 inches and 1-3/4 inches thick doors. This product has a 1 inch by 2-1/4 inches radius corner faceplate. If you are preparing your door for installation, the cross bore should be 2-1/8 inches in diameter and the edge bore should be 1 inch in diameter. This product is ANSI Grade-3 certified and rated for residential security.
- Finished in satin nickel and designed for left or right hand doors
- Fits 2-3/4-inch and 2-3/8-inch backsets; Fits 1-3/8-inch and 1-3/4-inch thick doors

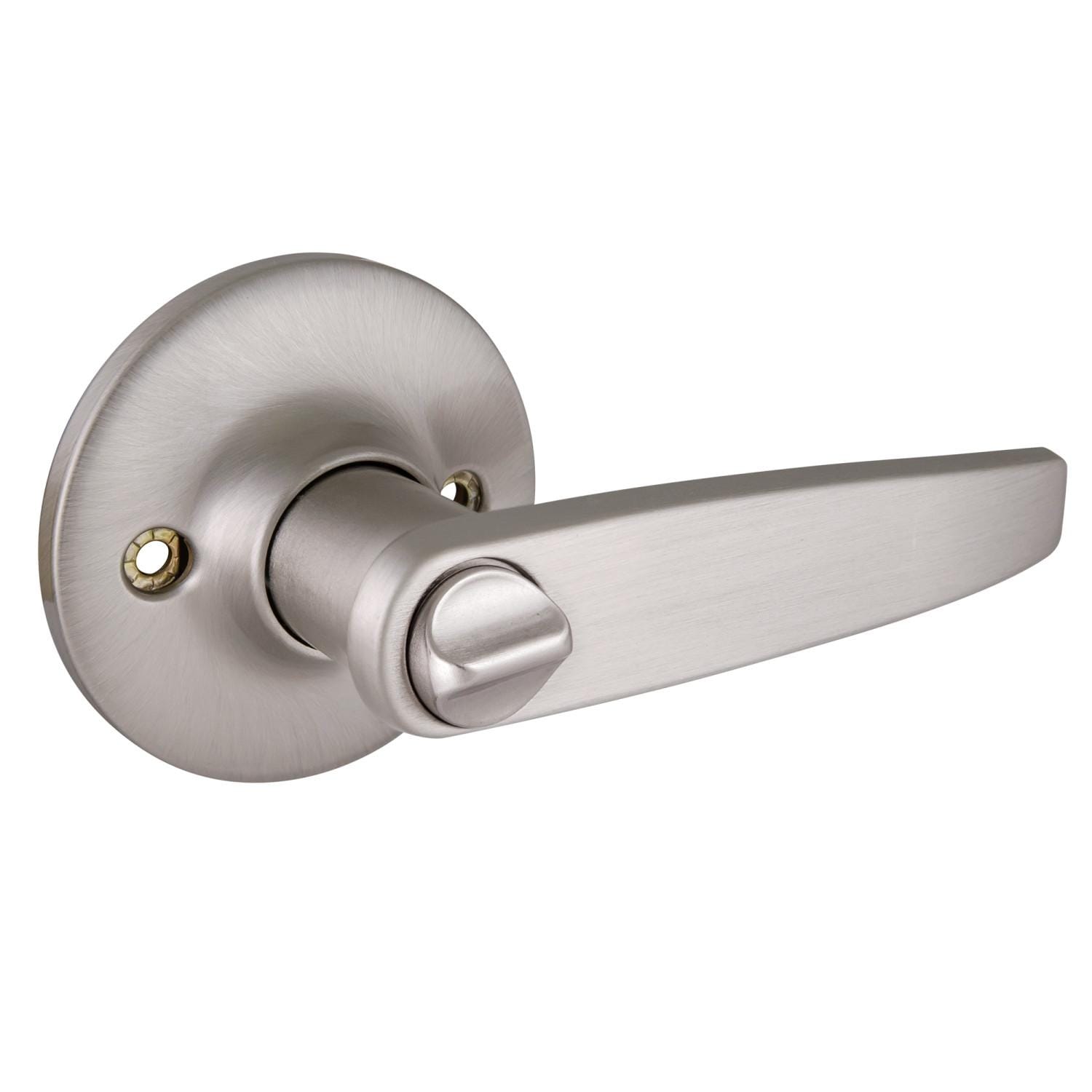

- Privacy Lock; locks from the inside with a turn-button and feature clearance hole on outside knob/lever to permit emergency release with a nail or like object.
Specifications
- Length: 5.75
- Width: 1.875
- Height: 2.625
- Weight: 1.56
- Warranty: 5-Year limited warranty
- Spec Sheet: Click here to download
