  • Single Cylinder 2-Way Latch Deadbolt in Satin Nickel

Single Cylinder 2-Way Latch Deadbolt in Satin Nickel

SKU 783589
Quantity Available: 3236
$21.96 $24.95

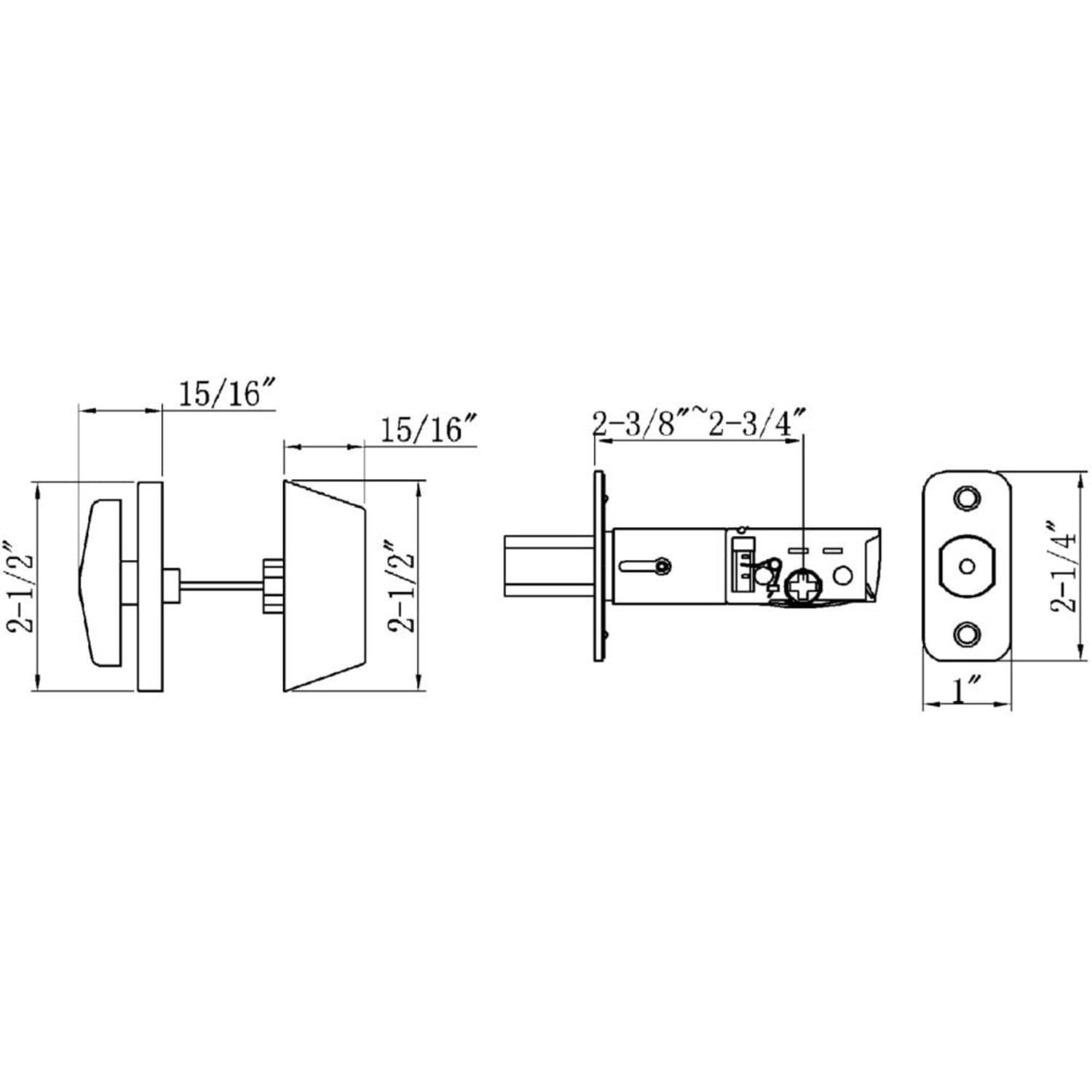

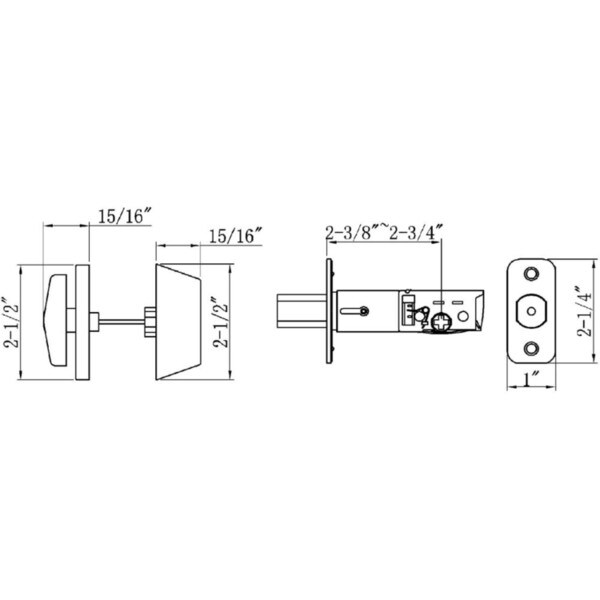

The Design House 783589 Single Cylinder 2-Way Latch Deadbolt accepts a key on one side of the deadbolt but is operated by a turn-button knob on the other side. Finished in satin nickel and designed for left or right hand doors, this deadbolt fits the two most common backsets in the U.S. (2-3/4-inch and 2-3/8-inch). The 1-inch latch bolt is plated in nickel and features a 5-pin high security core. Once in place, the bolt does not budge. Use this deadbolt on standard 1-3/8-inch and 1-3/4-inch thick doors. This product has a 1-inch by 2-1/4-inch radius corner faceplate. If you are preparing your door for this deadbolt, the cross bore should be 2-1/8 inches in diameter and the edge bore should be 1-inch in diameter. This product is ANSI Grade-3 certified, which means this deadbolt is rated for residential security. Designed and manufactured by Design House, the trusted source for quality lighting, hardware, plumbing, kitchen, and bath products for every taste and budget.
  • Designed for left or right hand doors
  • Fits 2-3/4-inch and 2-3/8-inch backsets; Fits 1-3/8-inch and 1-3/4-inch thick doors

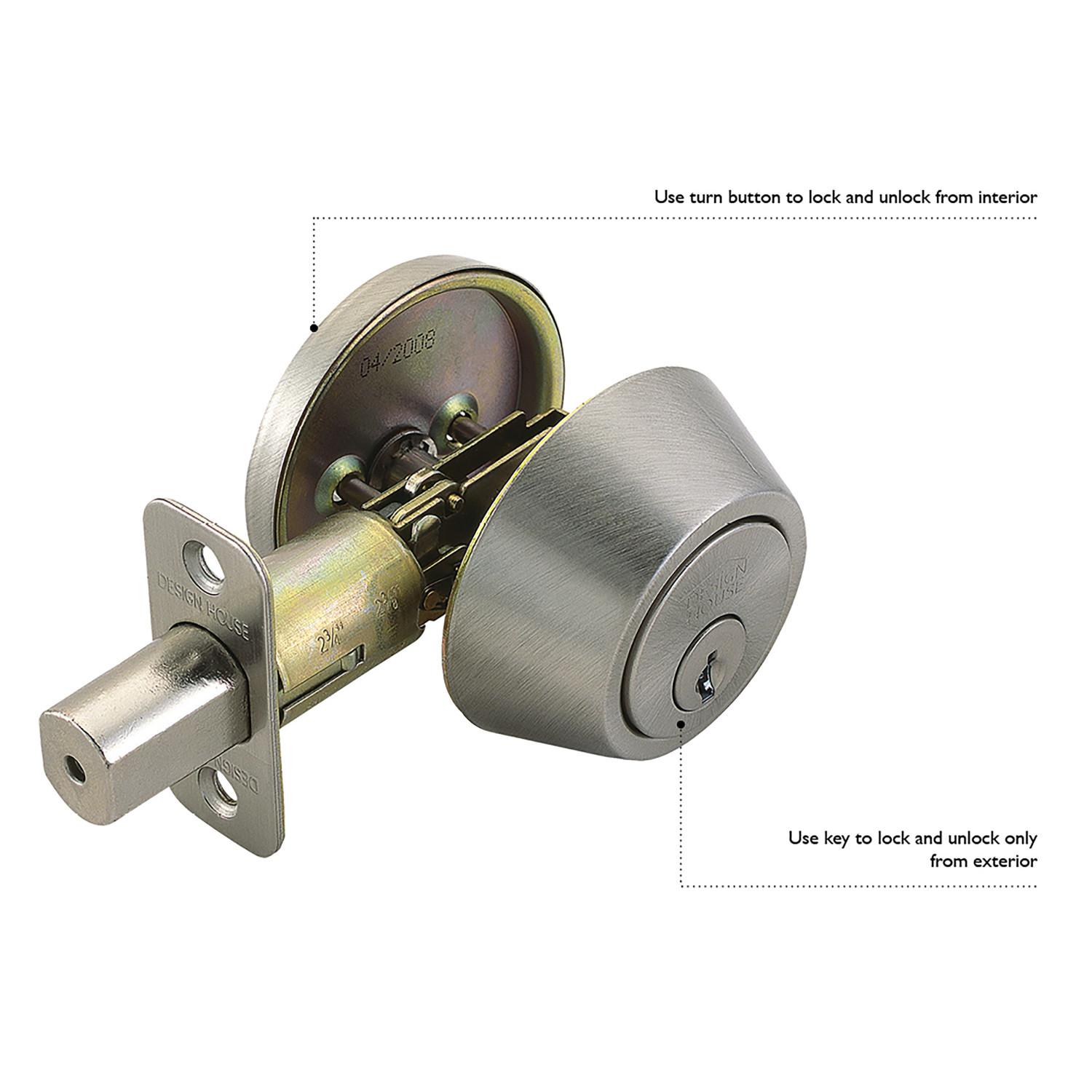

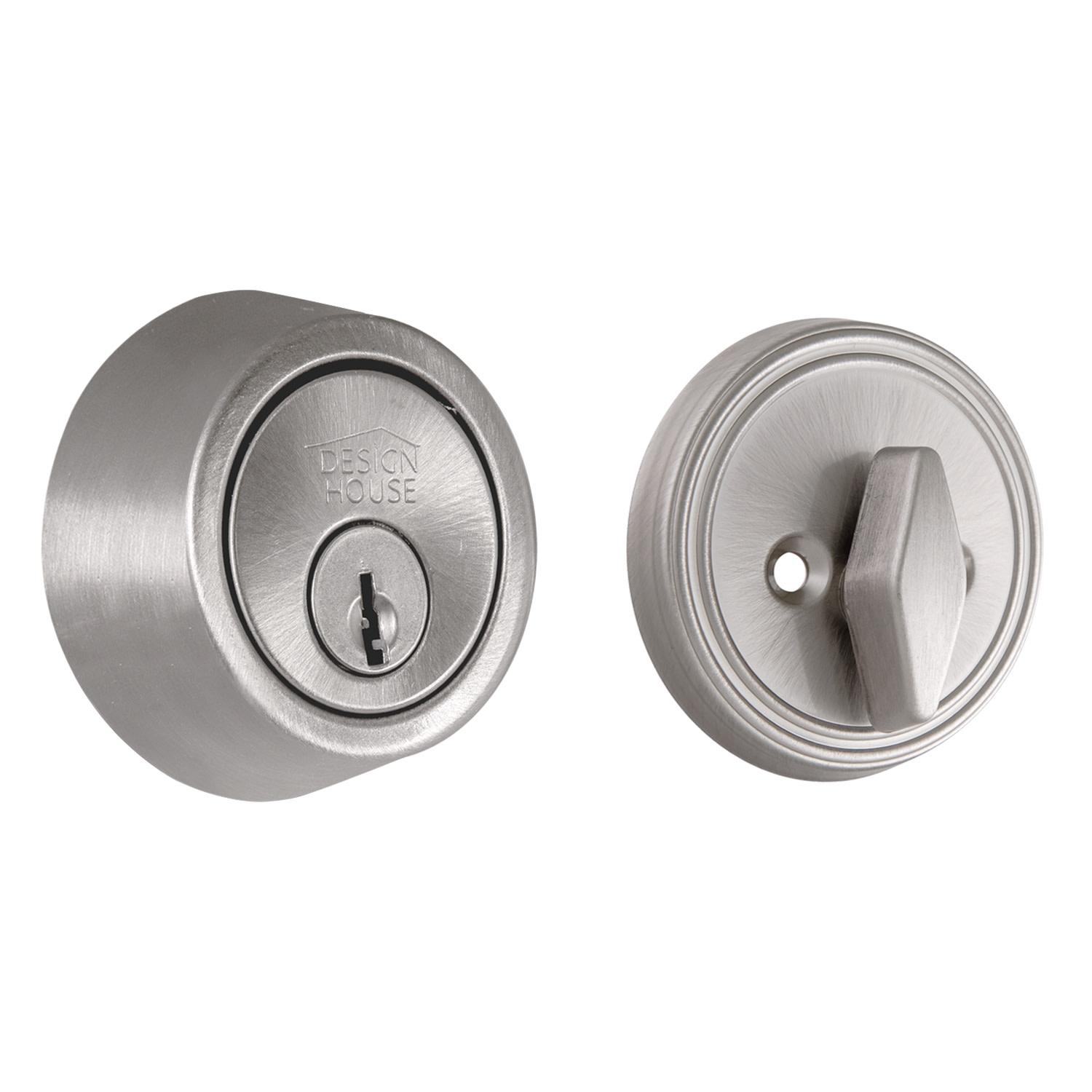

  • Single Cylinder Deadbolt; Keyed lock exterior, turn-button lock interior
  • Mounting hardware included for simple installation


  • Length: 3
  • Width: 2.6
  • Height: 2.6
  • Weight: 1.08
  • Warranty: 5-Year limited warranty
