Coventry Latch Entry Door Handle Set in Satin Nickel
Details

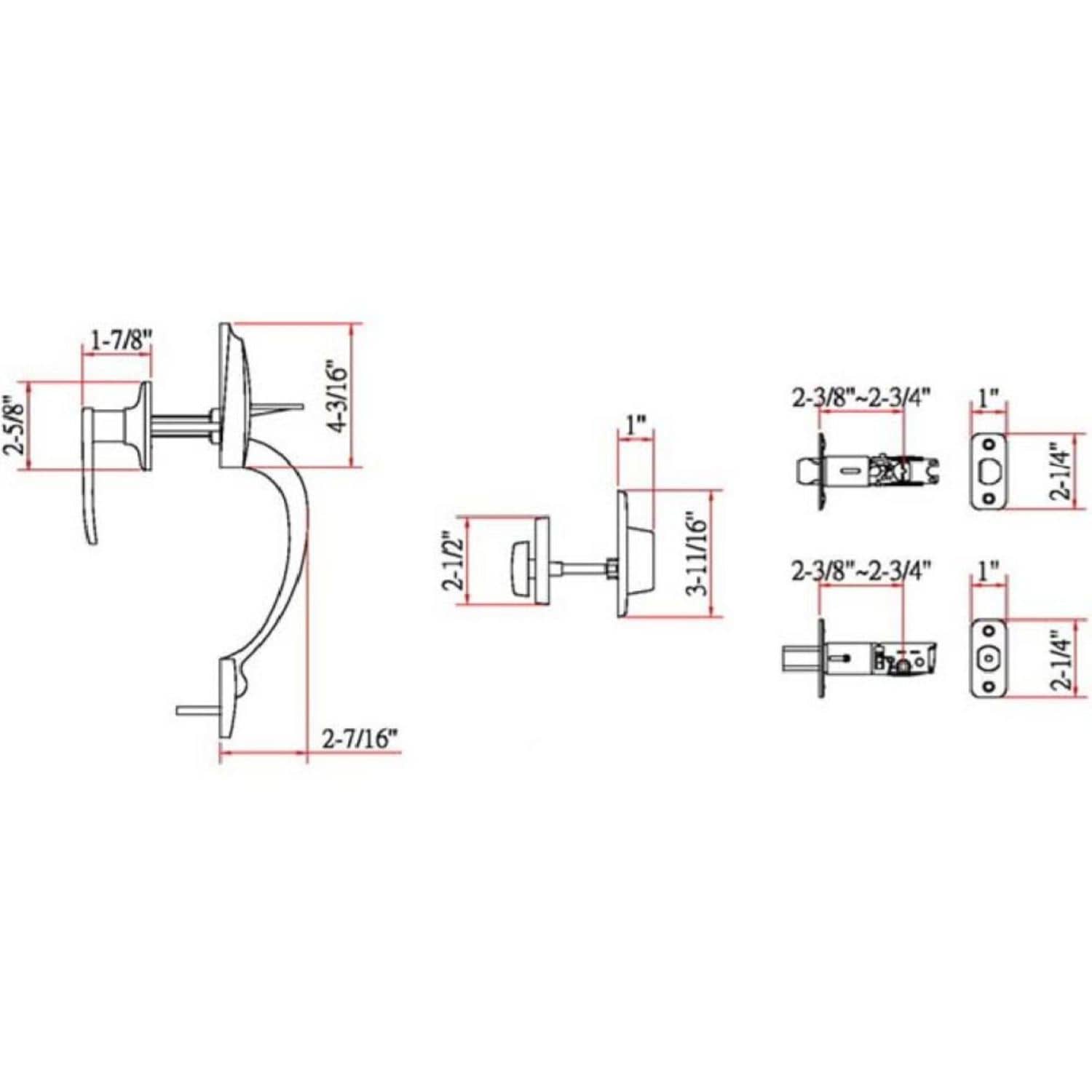

The Design House 702068 Coventry 2-Way Latch Entry Door Handle Set accepts a key on one side of the lock but is operated by a turn-button on the interior. Finished in satin nickel and designed for left or right hand doors, this knob and keyway fit the two most common backsets in the U.S. (backset is the distance from the edge of the door to the center of the bore hole), which are 2-3/4-inch and 2-3/8-inch. The 1/2-inch latch bolt is plated in nickel and does not budge once in place. Entry Handles are often used on front doors and back doors. Use this handle on standard 1-3/8-inch and 1-3/4-inch thick doors. This product has a 1-inch by 2-1/4-inch radius corner face plate and 5-pin security. If you are preparing your door for installation, the cross bore should be 2-1/8-inches in diameter and the edge bore should be 1-inch in diameter. Designed and manufactured by Design House, the trusted source for quality lighting, hardware, plumbing, kitchen, and bath products for every taste and budget.
- Finished in satin nickel and Designed for left or right hand doors
- Fits 2-3/4-inch and 2-3/8-inch backsets; Fits 1-3/8-inch and 1-3/4-inch thick doors
- Entry Lock; operated by a key on the exterior and is by a turn-button knob on the interior.
Specifications
- Length: 5.75
- Width: 2.44
- Height: 12
- Weight: 3.72
- Warranty: 5-Year limited warranty
- Spec Sheet: Click here to download
